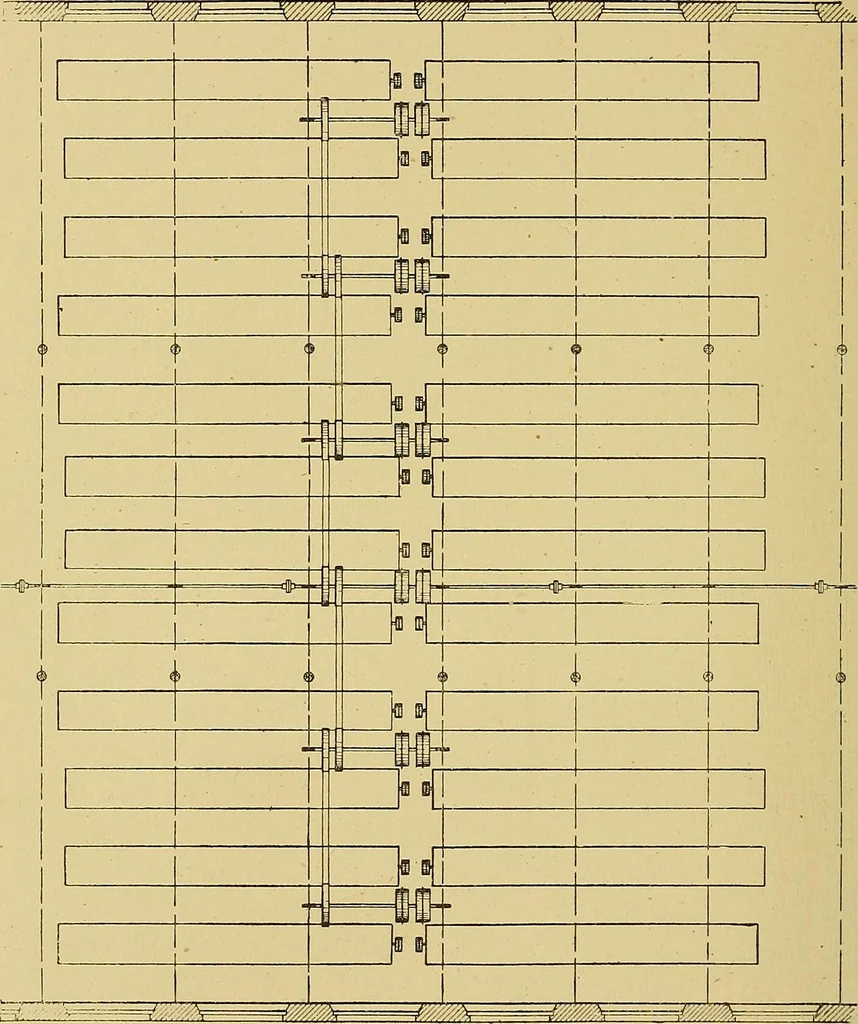

adapted for driving. When a mill is of sufficient width, the ring frames may be placedcrosswise of the room as in Fig. 190. This drawing shows a room 269 228 €OTTON SPINNING about one hundred twenty-five feet wide with four rows of columns.There are four ring frames in each line, across the room,… … There are but two lines of shafting, which extend lengthwiseof the room at right angles to the machines, and upon these mainlines are the pulleys, each pair of frames being driven from one pulleyby the same belt. A plan and an elevation of a drive of this description are shown 270 COTTON SPINNING…
