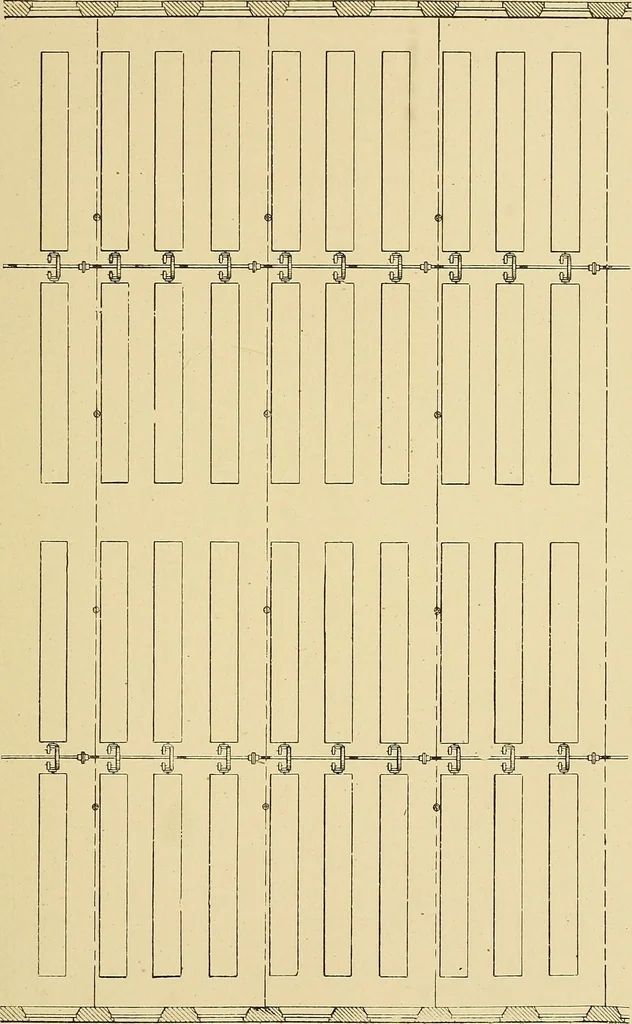

There are but two lines of shafting, which extend lengthwiseof the room at right angles to the machines, and upon these mainlines are the pulleys, each pair of frames being driven from one pulleyby the same belt. A plan and an elevation of a drive of this description are shown 270 COTTON SPINNING… … 271 230 COTTON SPINNING in Fig. 191. The belt, A, drives downward from the pulley, B, onthe line, C, and around the pulley, D, on the frame at the left hand,then upward over the carrier pulleys, E and F, downward around the
