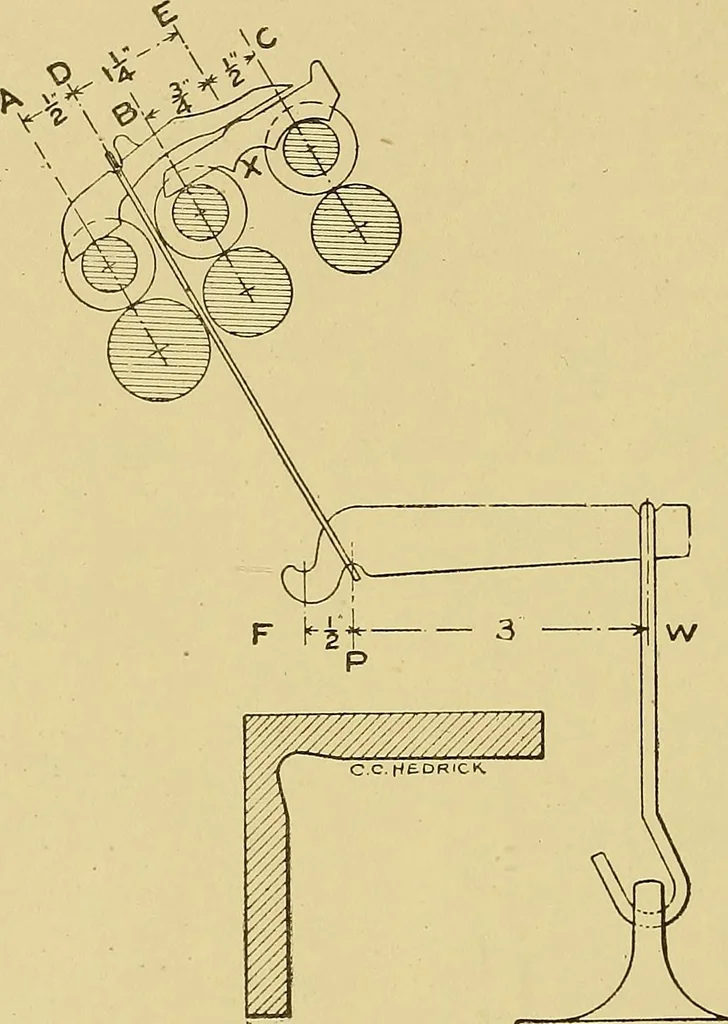

ving, there are two bobbins or ends for each spindle and the creelis two storied. A plan of a creel for a two and three-quarter inch spaced ringframe, for double roving with bobbins three and one-half inches 275 234 COTTON SPINNING in diameter, is shown in Fig. 193 and an elevation is shown in Fig.… … WEIGHT2i POUNDS Fig. 195. Diagram of Weighting. are flush with the boards, forming the creel. The porcelain offerslittle resistance to the rotation of the bobbins. The bobbins in the upper tier are shown by full lines and thosein the bottom tier by dotted lines. They are so spaced that the backrow…
