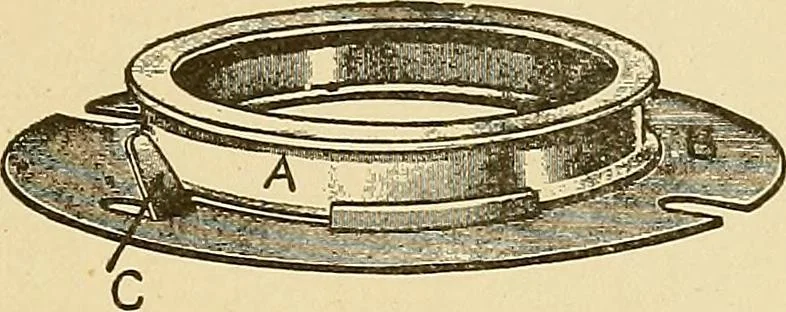

ring framesare usually double rings, set in either cast iron or plate holders.The ring shown in Fig. 203 is such, in a cast iron holder with wiretraveler cleaner; A, is the holder, B, the ring, and, C, the cleaner.A recess is formed on the inside of the holder and the traveler cleanerlies around… … Fig. 204. Double Ring in Plate Holder. floating about a spinning room, and which are Vjound to gather on the traveler, are wiped off and the traveler kept clean. Unless the traveler is kept free from this accumulation, uneven yarn will be caused. The traveler cleaner is set just far enough away so…
