Cyclopedia of textile work : a general reference library on cotton, woollen and worsted yarn manufacture, weaving, designing, chemistry and dyeing, finishing, knitting, and allied subjects (1907)

Chicago : American school of correspondence · leaf 125

An illustration from Cyclopedia of textile work : a general reference library on cotton, woollen and worsted yarn manufacture, weaving, designing, chemistry and dyeing, finishing, knitting, and allied subjects, 1907, leaf 125

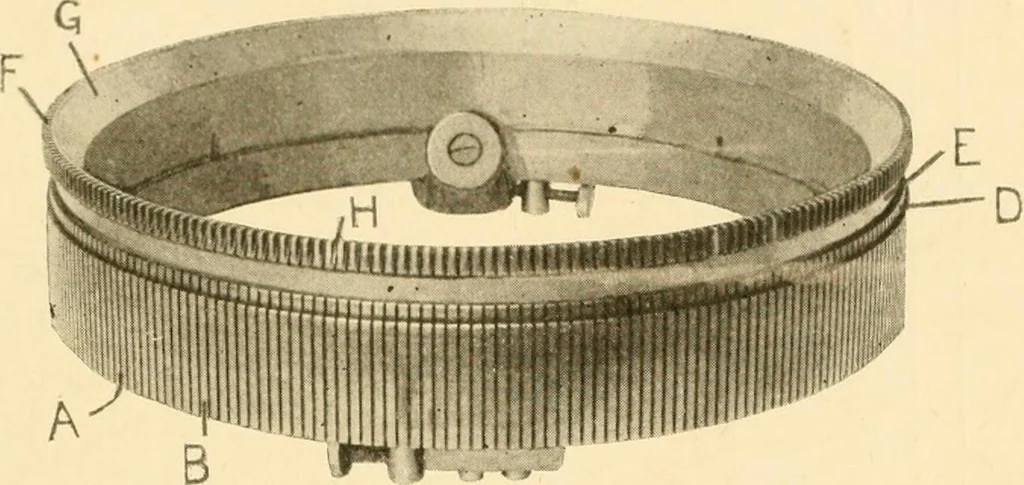

Fig. 39. Latch Needle Circular Knitting Machine.Revolving Needle Cylinder. lie KNITTING 97 is arranged. On this cam ring are secured four studs D, to supportthe dial arch E for holding up the cap, on which is arranged the camsystem for the radial needles, and the dial. The bobbins are heldon a… … XcfaieCvlmder. To the right housing plate Y is secured the driving shaft bracket I,which makes the outer bearing for the driving shaft, and on the shaftJ are tight and loose pulleys between the bearings. Outside the
