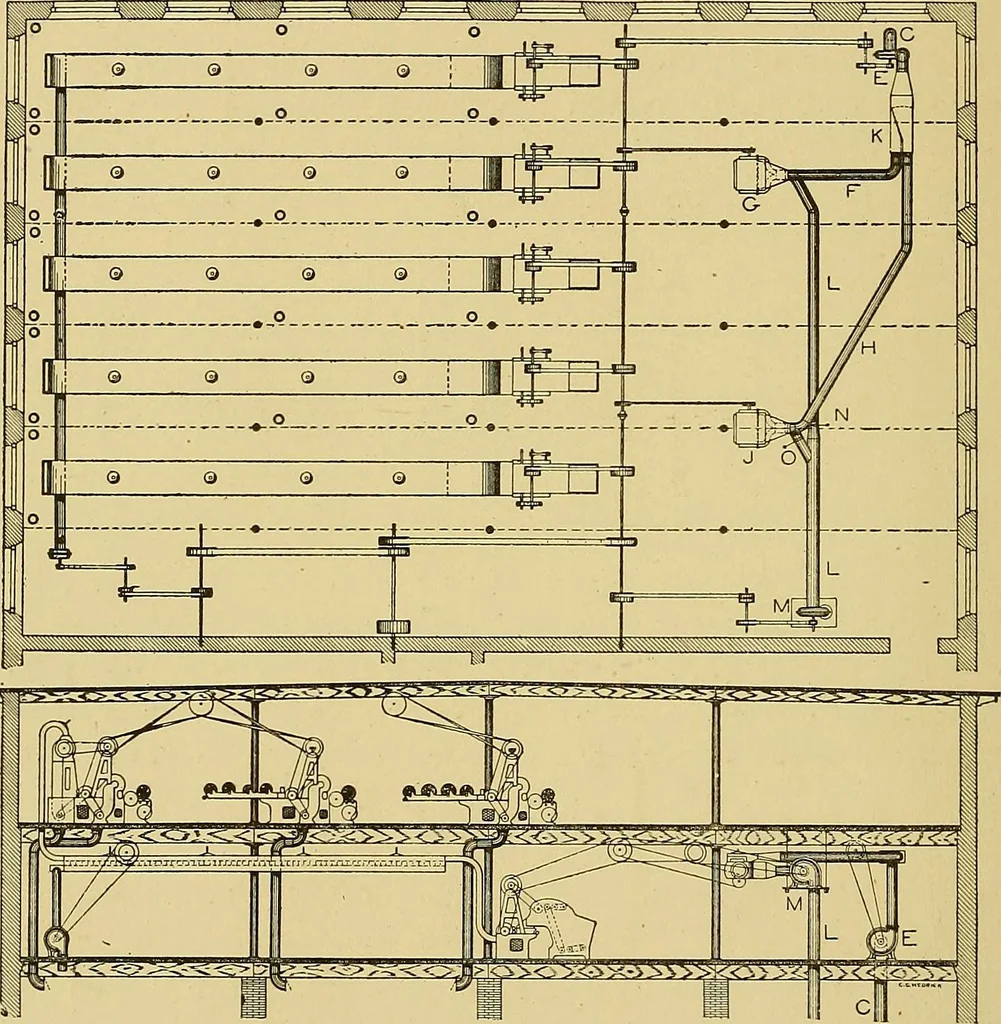

rs an enlargedpart of the pipe, rectangular in section and in which is a gate, K, 71 36 COTTON SPINNING. shown by dotted lines, which may be operated from the outside ofthe pipe. From this point, the pipe divides, line, F, leading to eon-denser, G, and line, H, to condenser, J. If it is desired to… … Lt}>S.? Fig. 25. Plans and Sectional Elevation, showing details of piping forBlowing System. tlie gate is moved straightway of the pipe, leaving both branchpipes open to the condensers. The dust and dirt from the condensers are discharged into thedust room tlirough the pipe, L, by the fan, M.…
