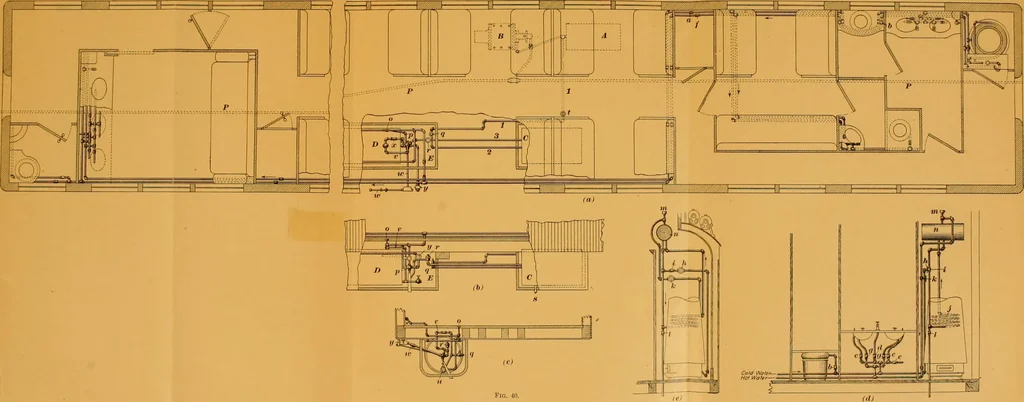

re given, (a) is a plan of part of the car; (6), a sideview; (c), a cross-section through end £■ of the tank box; (c?), aside view of the right-end portion of the car; (e), an end viewof the same, showing the heating arrangements. Of the partslettered, A is the auxiliary reservoir; B, the brake… … § 13 CAR HEATING. 93 and waste cock for the closet; c, c, the stop-cocks for the washbowls; d, the stop-cock for the faucet; e, the stop-cock for thefire-hose. Among the hot-water fittings are /, view (a), theshut-off cock in the supply pipe; g, g, view (cZ), the stop-cocks forthe wash bowls; h,…
