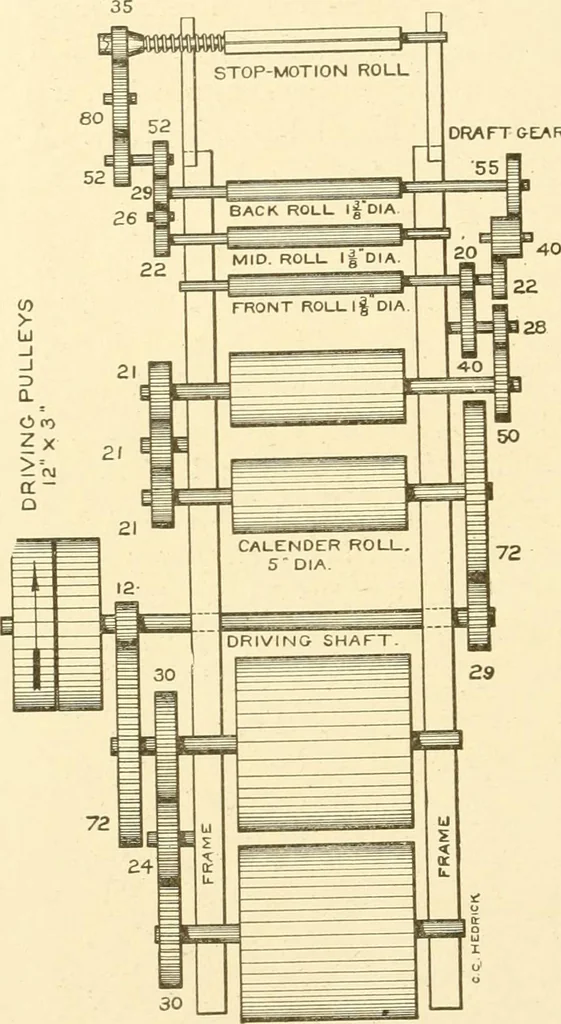

a counter-weight, HI, which ishung upon a stud, Li.The draft rolls are alsoprovided with a clearer,D^. In addition to theii-own weight, the top cal-ender rolls are leverweighted, the. rod, Ei,connects tlie yoke whichis over the bearings ofthe top rolls with theweight lever, !N i, uponwhich is the… … LAP ROLU12 DIA. Fig. 109. Diagram of Gearing ofSliver Lap Machine. The fulcrum for the weight lever is a projecting lug. Si, upon theframe of the machine. Calculations. Fig. 109 is a diagram of the gearing of thesliver lap machine. Rule 1. To find the draft: Multiply the number of slivers,entering…
