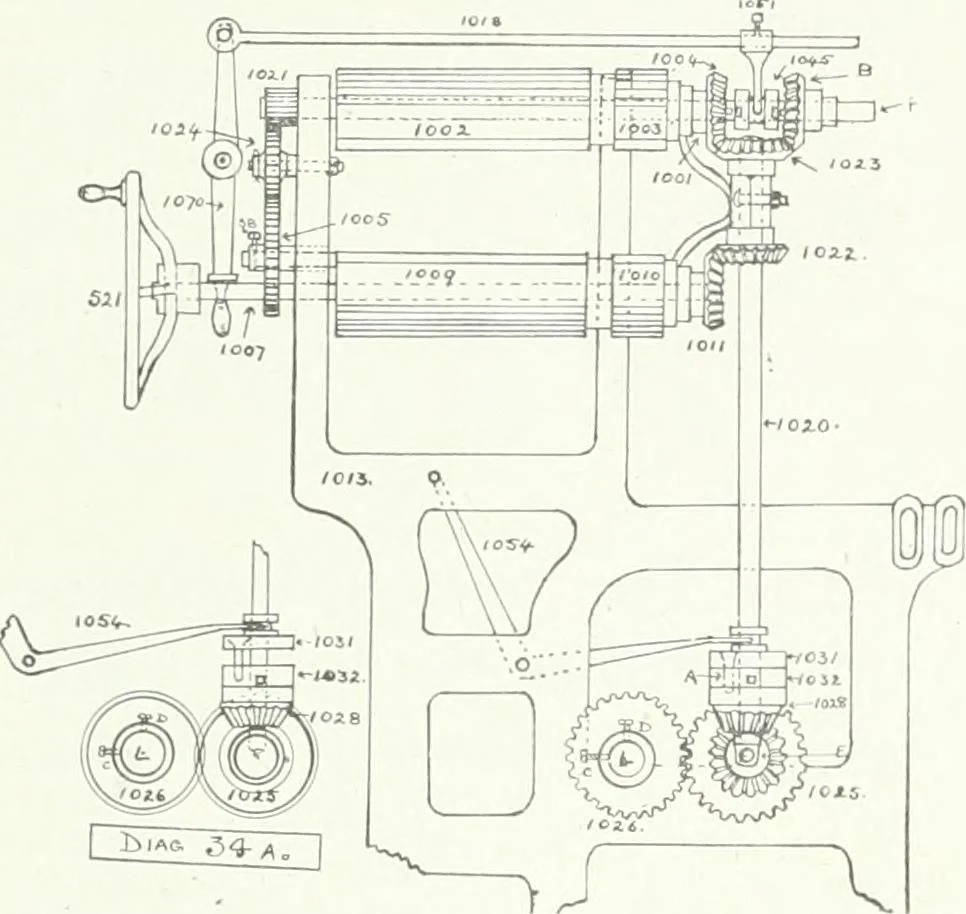

34.) always re-volves in one direction, and at the top of this shaft isfixed a bevel wheel K,, which is in gear with two com-panion bevels K & K„ K being used to turn the top 338 CANADIAN TEXTILE JOURNAL December, 1914. chill, also to turn lag cylinder forward, and Ki, revolv-ing loosely upon… … the top of the cylinders H, & H,, and under the vi-brator levers thus : The handle W is pressed inwards to-wards the loom frame; this causes the rod K and thefinger M to press the moveable clutch L (which is freeto slide horizontal^ along a key bed on the shaft G)over the top of a small…
