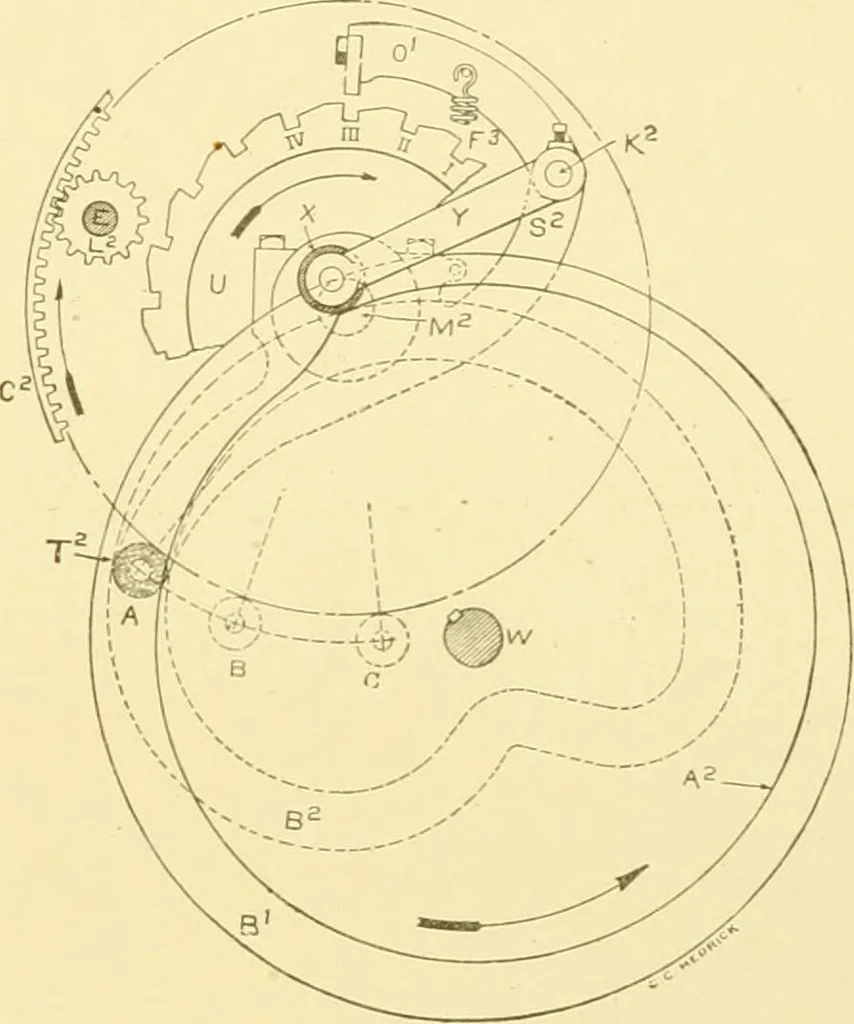

Fig. 129. Fio. 130. Diagrams of Detaching Roll Cams. In Fig. 129, the cams are shown as having completed aboutthree-quarters of a revolution. The cam roll, T^, is on the smallestdiameter of the groove at C The })awl, which is shown jnst en-tering notch III in Fig. 128, lias engaged the whole depth…
