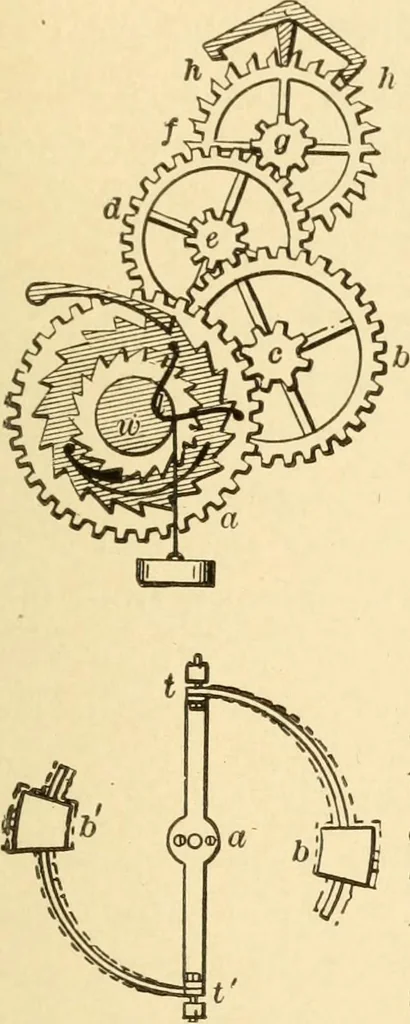

face of teeth is slightly pitched forward. Thestop-faces of the pallets A, B are concentric with theaxis, which gives the dead-beat stop. 1172. ENDLESS CORD-WINDING DEVICE for clocks. The cord runs over grooved pullies. Pis the driving wheel, and / the ratchet winding ar-bor, the turning of which… … 1173. CLOCK TRAIN, showing the methodof sustaining the movement of the train dur-ing the time of winding. The bent springkeeps a tension on the large gear by the lock-ing of the large ratchet to which the bent springis attached, when the winding of the barrel canbe made without a back-set in the…
