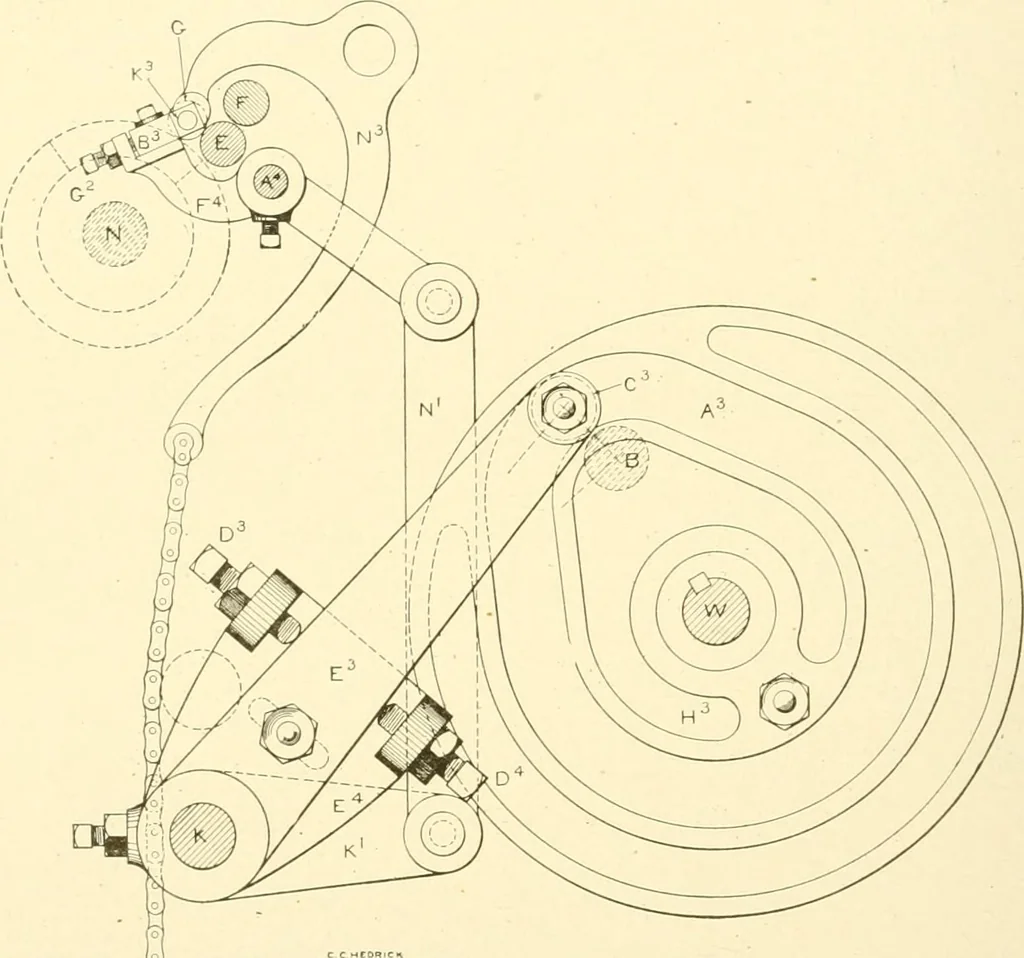

is shown by the relativ e positions of a dark spot marked upon thegears in Figs. 127, 128 and 121». 189 l:,o COTTON SPINNIXG. The completion of the revolution of the cams is shown inFig. 130. The cam roll has moved from C back to A and thenose of the cam, A^, has come into contact with the cam… … Fig. 131. Elevation showing Lifting Cam. cam, the pawl will drop into notch IV. The point, marked by thedark spot, has advanced in the same propoition as the notchedwheel, as will be seen by its position above tlie pinion. The detaching rolls turn backwards at about 11 by the tim-ing dial and…
