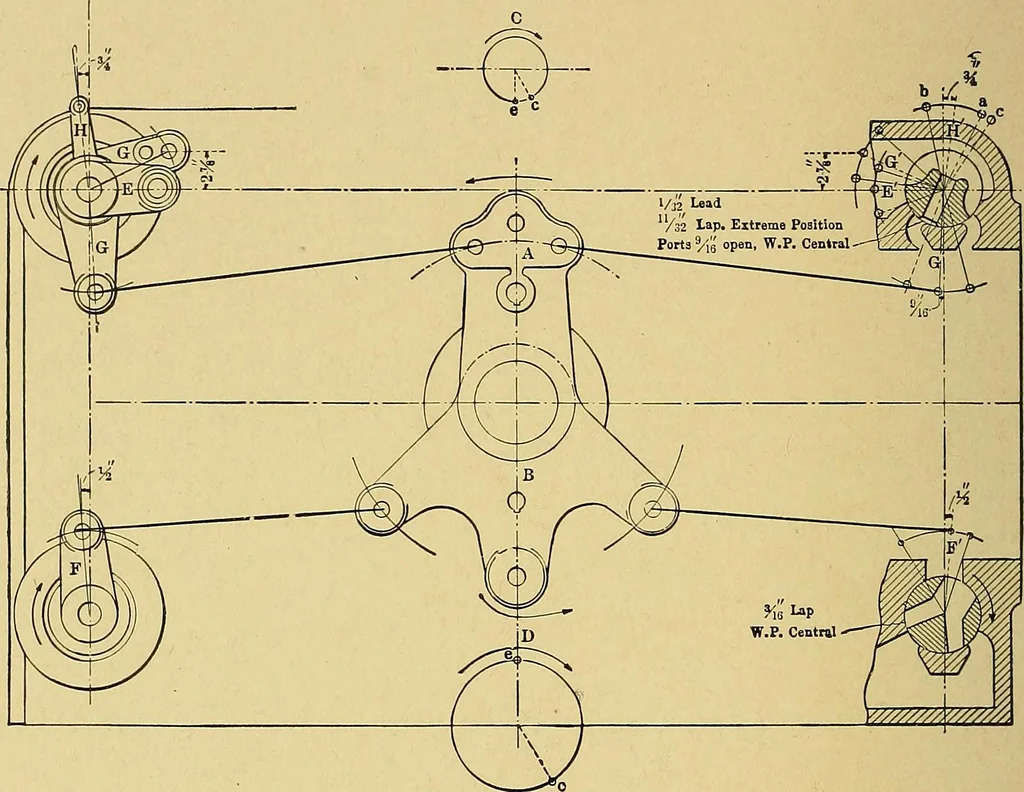

174 VALVE SETTING E, the exhaust-valve crank hjF; G is, the bell crank and H the knock-offcam. On the other end of the cylinder where the valves and ports arein cross section, the dotted lines E, F, G and H denote the center linesof the same parts on that end, and the arcs at the ends of these… … FIG. 178. arcs the center lines show the positions of the pins when they reach theirrespective extremes of travel. Steam Valves Open at Both Ends When Hooked Up In Fig. 178 the wrist plates and all connected parts are shown intheir central positions, at which the exhaust valves are lapped, as…
