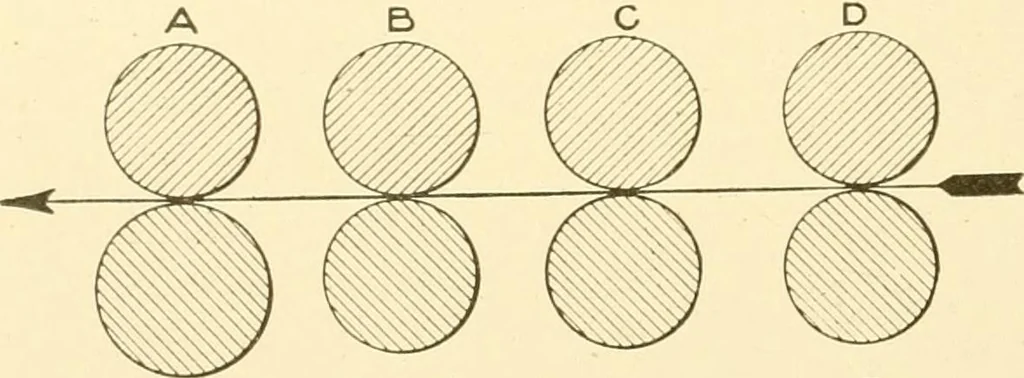

Fig. 142. Frout Elevation of Drawing Frame Driven from Above. sliver plate, J, through the trumpet, N, and between the calenderrolls, E and F. From this point, it falls through the spout of thecoiler. G, and is coiled in the can, H. Stop Motions. The drawing frame is j)rovided with four… … ABC P Fig. 143. Section Showing Draft Rolls. at the front of the machine becomes full, two calender roll stopmotions which operate when the sliver is absent from between thecalender rolls or when a wind-up occurs on either of them, anda back stop motion which causes the head to stop when the…
