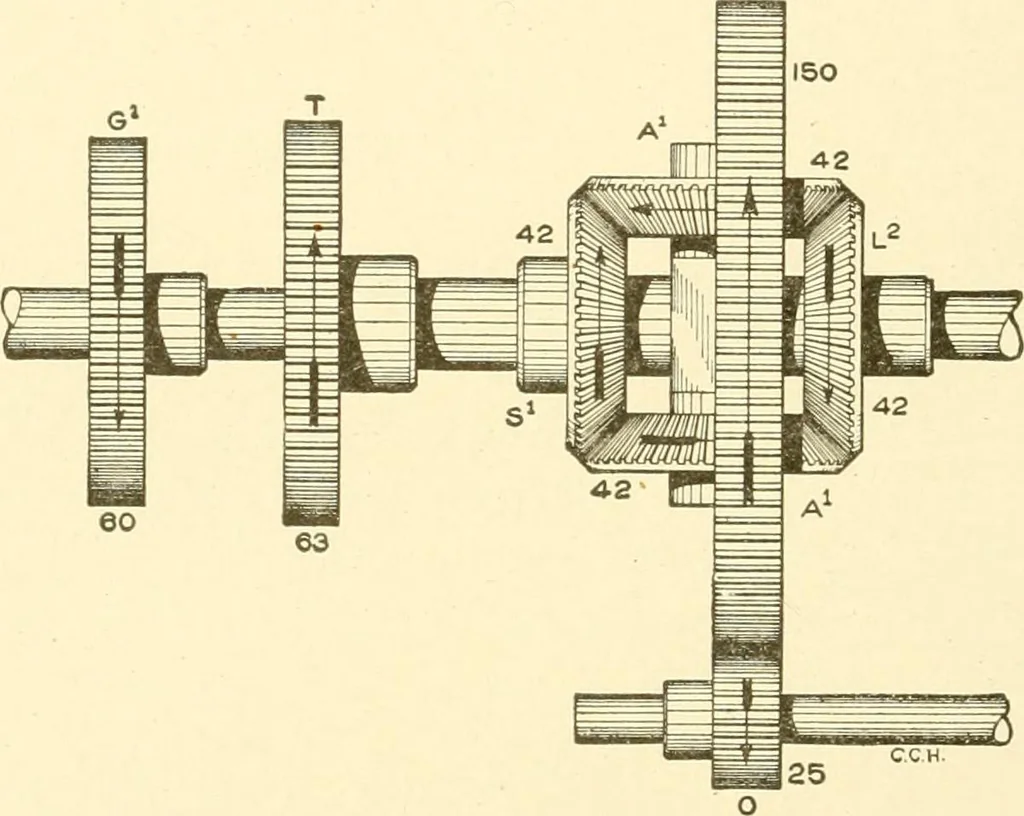

same as the sleevegear. The mitre gear, L^, is fast upon the driving shaft and themitre gear, S^, is fast upon the hub of the sleeve gear. The gears, S* and L^, turn in opposite directions and, if theyare run at the same speed, the sun wheel will remain stationary.But if S* is run at a greater… … Fig. 165. Fly Frame Differential Gearing.revolutions, in the opposite direction, the sun wheel will turn onerevolution or one-half the difference between the revolutions ofthe gears, S^ and D, but in the direction of S^ The speed of the driving shaft is 400 R.P.M. and, as we havefound, the speed of…
