Mechanical appliances, mechanical movements and novelties of construction; a complete work and a continuation, as a second volume, of the author's book entitled "Mechanical movements, powers and devices" ... including an explanatory chapter on the leading conceptions of perpetual motion existing during the past three centuries (1910)

Hiscox, Gardner Dexter, 1822?-1908 · New York, The N. W. Henley publishing company · leaf 180

An illustration from Mechanical appliances, mechanical movements and novelties of construction; a complete work and a continuation, as a second volume, of the author's book entitled "Mechanical movements, powers and devices" ... including an explanatory chapter on the leading conceptions of perpetual motion existing during the past three centuries, 1910, leaf 180

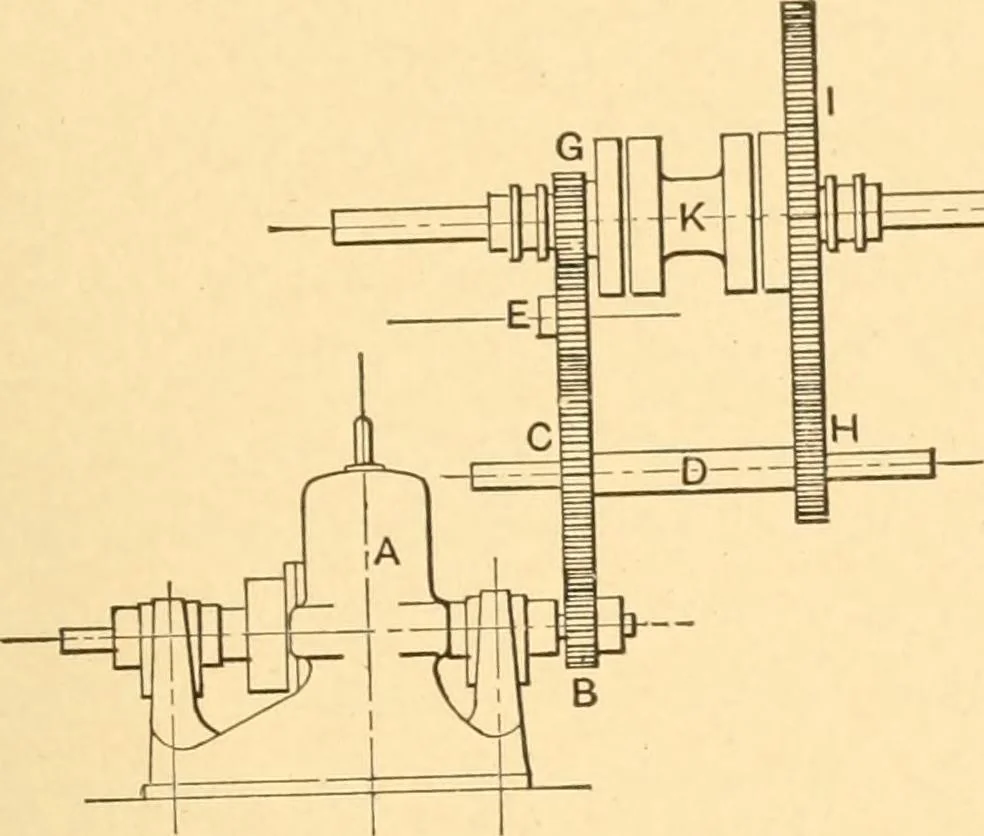

u L ELECTRIC POWER AND DEVICES. 179 … 432. ELECTRO-MAGNET-IC CLUTCH. Reverse I [vjh change speed from a single ^^ pinion. A is the motor and B the motor pinion, drivinga gear C which is keyed to ashaft D. From shaft D themotion can be transmitted toshaft F, either through gearsC E and G, or through gearsH and I—the clutch arrange-ment…
