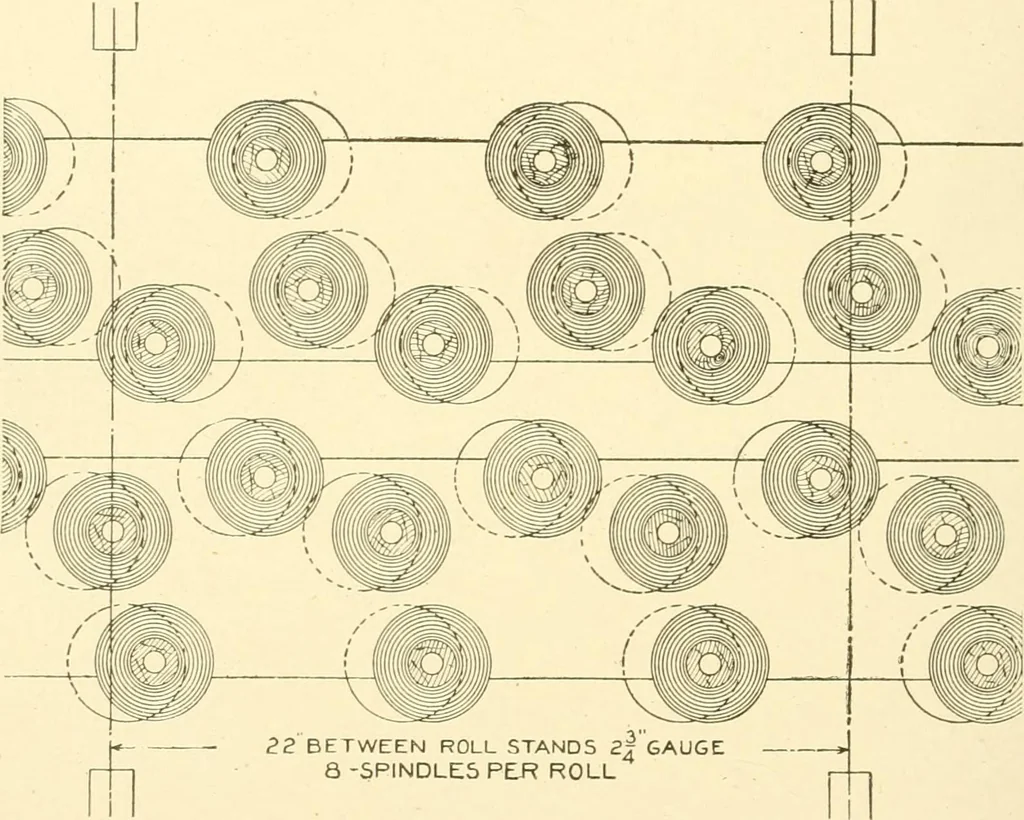

wideenough to place four frames across the room so that an operativecan tend at least eight sides. A sectional elevation of a ring frame is shown in Fig. 192. Thevarious parts of the machine may be referred to briefly as the creel,C, for supporting the bobbins of roving, the roll stands, F^,… … Fig. 193. Plan of Creel for Double Roving. thread board, the ladder or spindle rail, I, spindle, N, ring rail, E^rings, L\ drum, F^ supports, T, creel rod, 0-, cross shafts, M^lifting rods, C^ separators, N^ adjustable feet, J^ and drum box, NlThe roving. A, from the top row of bobbins, is drawn…
