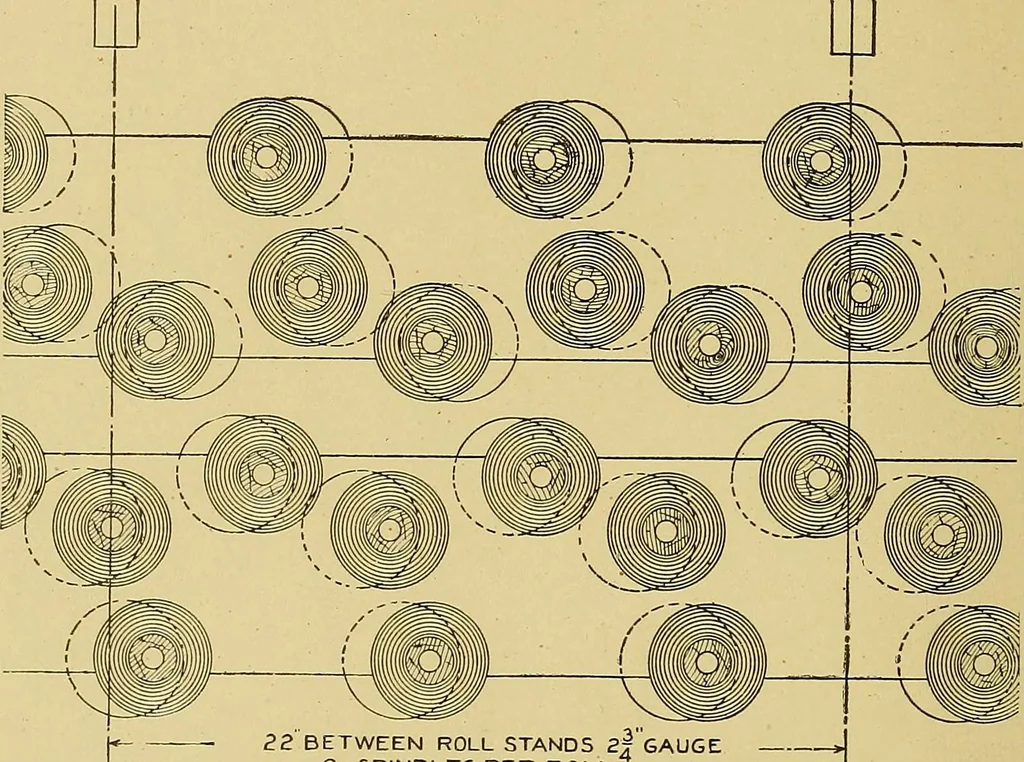

wideenough to place four frames across the room so that an operativecan tend at least eight sides. A sectional elevation of a ring frame is shown in Fig. 192. Thevarious parts of the machine may be referred to briefly as the creel,C, for supporting the bobbins of roving, the roll stands, F^,… … n 22 BETWEEN ROLL STANDS zf GAUGEa -SPINDLES PER ROLL Fig. 193. Plan of Creel lor Double Roving. n thread board, the ladder or spindle rail, I, spindle, N, ring rail, E^rings, U, drum, F^, supports, P, creel rod, O^ cross shafts, MSlifting rods, C^, separators, N^ adjustable feet, J^ and drum box,…
