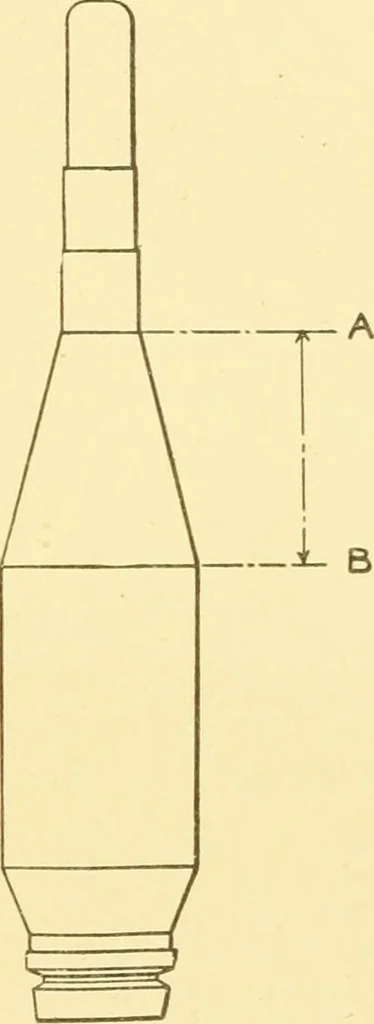

unning the ring rail down, to bring the traveler to the position wantedon the bobbin. The rail is then raised to the desired point, and byadjusting the length of the chain arm, T? (Fig. 212), the exact lengthof the traverse can be determined. The length of taper, for the top or bottom of the… … Fig. 214. Filliug Bobbin. 293 9.n,9 COTTON SPINNING fulcrum of the builder arm is at Q; the throw of the cam is shown bythe distance between the center of the cam rolls, A and B. When the rail is traversing its greatest distance and the rack iswound out, the hook is at G and the length of the…
