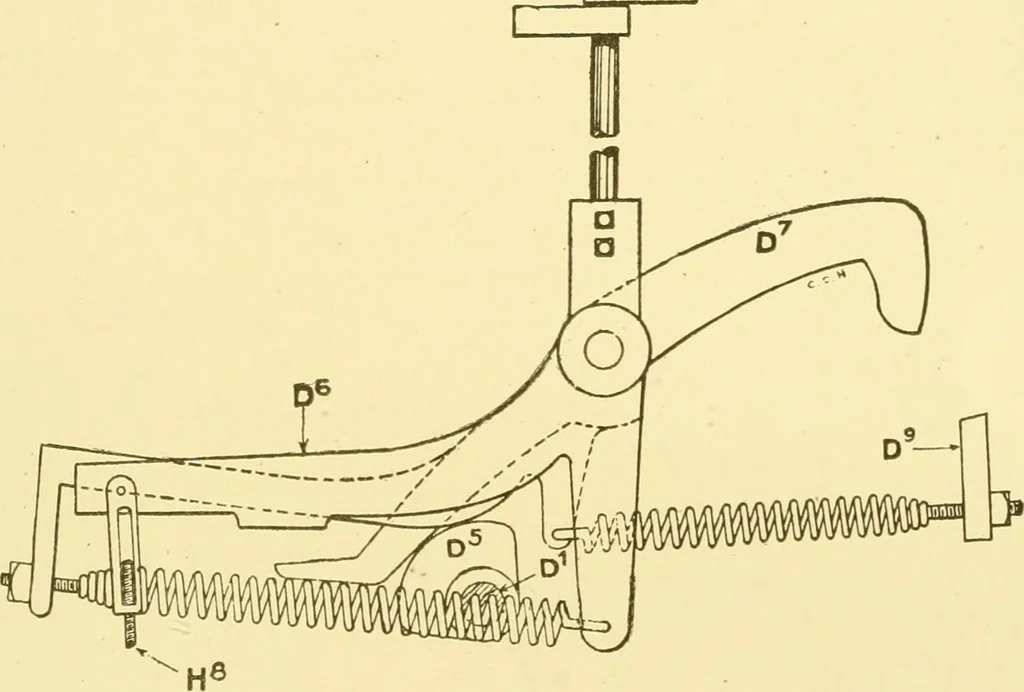

Fallers. 320 COTTON SPINNING 279 On the outside of the headstock are two levers, B and B, caUedthe front and back change motion levers and which are connectedby a rod, B^, called the change motion rod. On the forward end ofthe rod is the shipper dog, B^ which operates the cam clutch lever, B-. Just… … Fig. 233. End Elevation of Cam Sliaft. the cam clutch lever. This movement causes the two parts, D^ andD^, of the cam clutch to engage and the cam shaft shell is given a halfrevolution, causing all of the cams to assume opposite positions tothose which they occupied during the outward run. When the…
