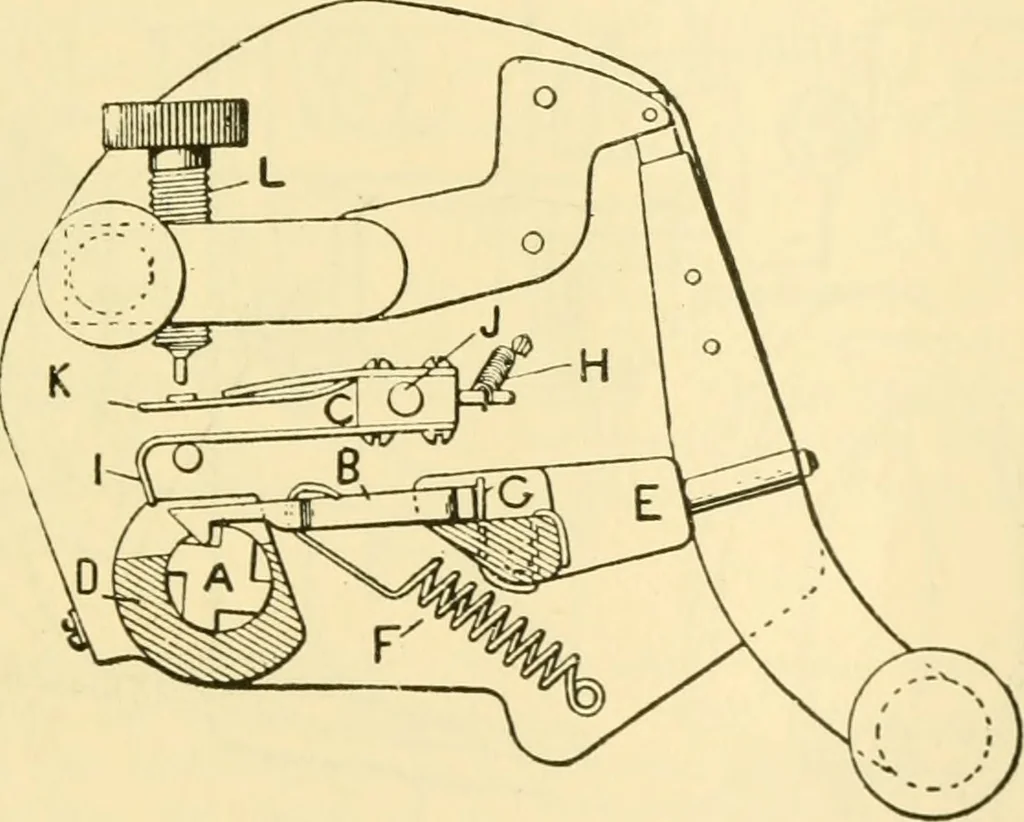

hirty-secondof an inch. IGNITION 203 4. The vibrator contacts should be made flat and clean,and the vibrator properly adjusted. Testing the Spark Plug.—The spark plug should be unscrewedand placed on the cylinder without disconnecting the wire to theinsulated electrode; the body of the plug only… … Fig. 118.—Contact maker of Atwater Kent spark generator. The movingparts are the shaft A, the snapper B, and the pivoted contact arm C. Theshaft carries four (or six for a six cyhnder engine) milled notches forming aratchet which engages the claw at the end of the snapper B. The operationof the…
