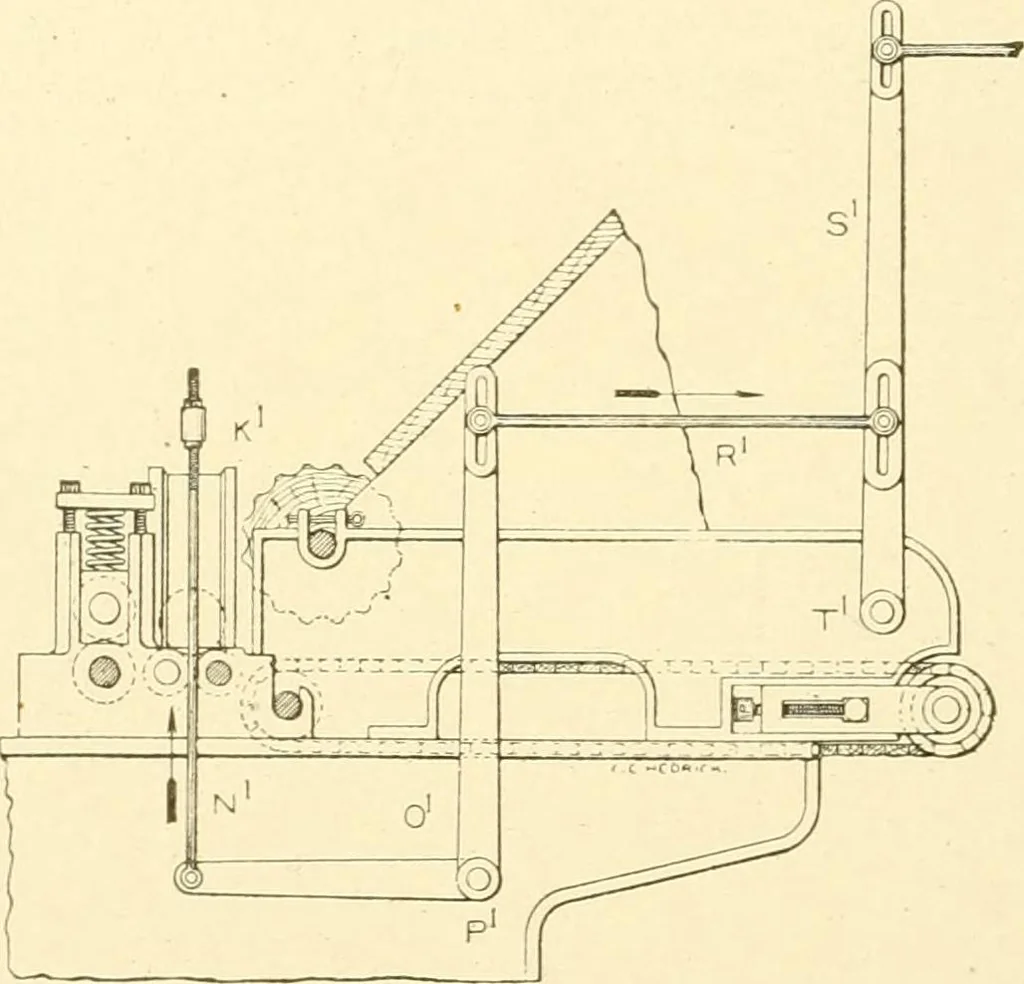

f the evener case is the evener lever, K^,which is connected to the main saddle by the stem, L^. The ful-crum of the lever is at M^ and the long eud is connected to a rod,Ni. Fig. 35 is a side deviation showing the coiniections between,the evener lever and the cone-belt guide. It will be seen that… … Fig. 3). Elevation Sbowiug Comiectioiis from Evener to Ct)ne Belt. latlin is a slud, Ti, which forms a fulcrum about Avliich the leverturns and at the upper end is connected the cone-belt gnide, Wi-.When the evener roll is raised, by reason of an unusual thicknessof cotton going through, the evener…
