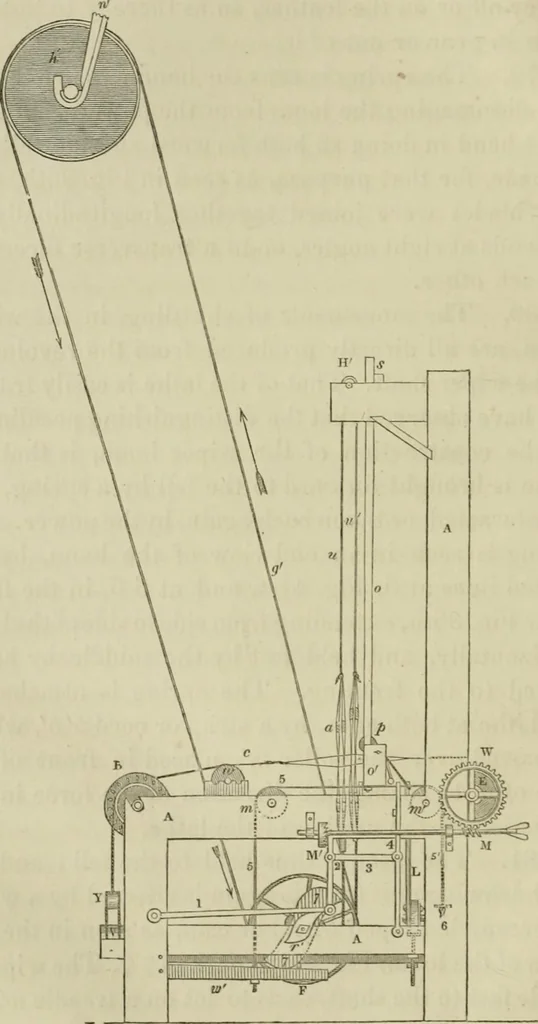

front of thesole of it to change the direction of the force in thedirection of the motion of the lathe. 181. The lathe is thus held to the fell; and thewithdrawing of it from it again is eifected by a wiperor eccentric-shaped wheel or cam, as seen in the endviewof the loom. Fig. 41st, marked 7 7.… … Fig. 41. Eud View of the Old Wiper Loom. ON WEAVING BY POWER. Ill mnnication changed by the roller m, in a mannersimilar to that with the spring. The lathe is thusplaced between two forces, and as the treadle is al-ternately depressed by the revolution of the shaft,the spring brings it forward to…
