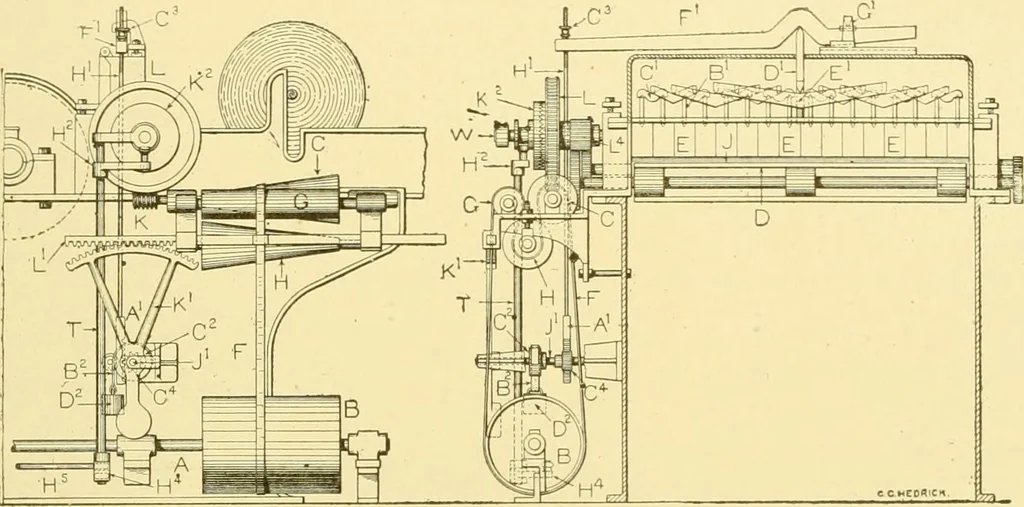

iderthem, the quadrant shaft is turned slightly, and by the connectionsjust described, the cone belt is moved to a different position on theface of the cone, changing the speed of tlie evener and feed rolls.This will continue until the thick or thin place, as the case mayhe, has passed by the… … Fig. 38. Sectiou and Side Elevation of Evener for Picker. In order that the sectional plates shall not rise too easily, adrum, or weight pulley, C^, is fastened to the quadrant shaft.Around this pulley, and fastened to it, passes a strap, B^, the lowerend of which is connected to a weight hook upon…
