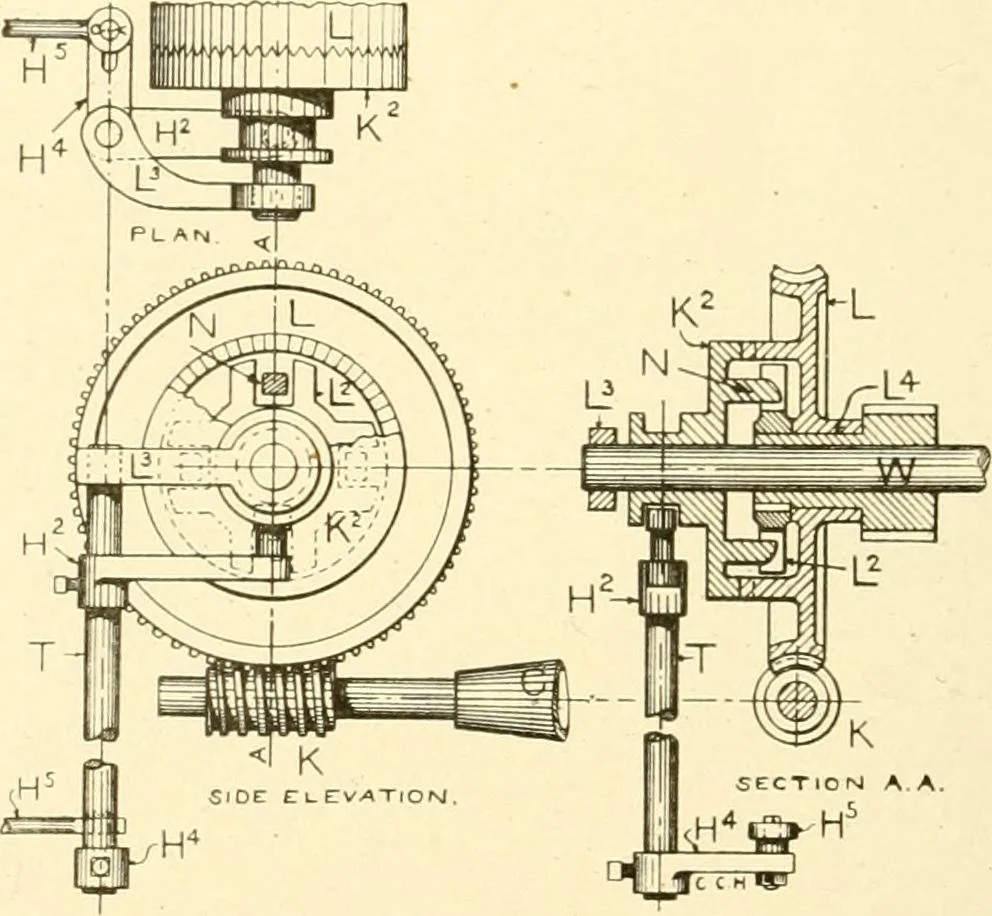

e with the teeth of the worm gear, the sleeve being drivenby the lugs projecting between the arms of the dog. Another style of evener, which is applied to intermediate orfinisher pickers, is shown in three views, a section, an end elevationand a partial plan in Fig. 40. On the end of the evener… … Fiff. .S9. Clutch aud Worm Gear. 84 COTTOX SPINNING. 4;) by the gears, N and P. The cotton passes on the feed apron, A,and between the evener roll, and the pedals, C, then between thefeed rolls, E and G.These pedals, eight innumber, are made Avithone end a flat surfaceover which the cottonpasses,…
