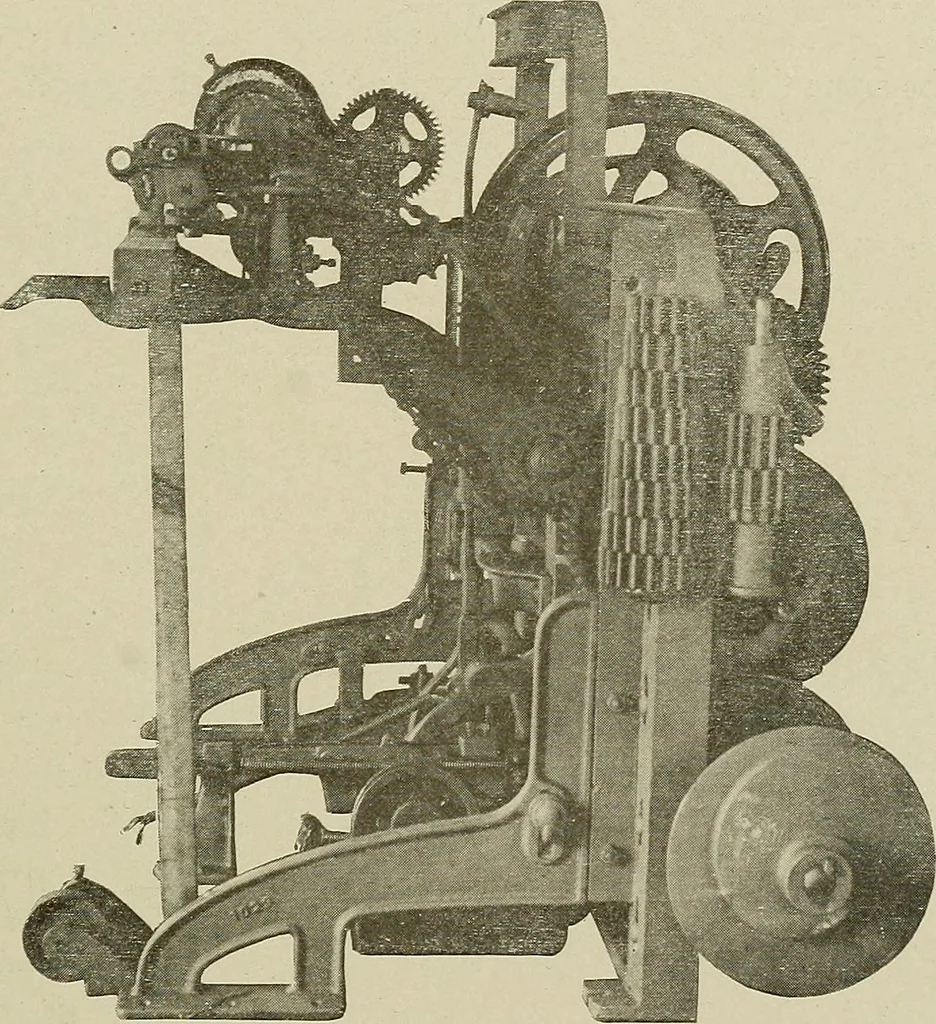

fast to the 258 WOOLEN AND WORSTED SPINNING 237 bobbin C on the spindle S. The two bottom delivery rolls are gearedto the drum L being driven in turn from the head stock. When the delivery rolls are revolved, the drum L is turned,unwinding roving from the spool M. The top delivery roll is madein… … Fig, 153. Side View of Head, Davis & Furbcr Mule. board B*^. A short distance above B a small grooved pulley B,known as the whirl, is placed. Passing around this whirl and aroundcylinder A is an endless band which transmits power from the cylinderto the spindle. Each spindle on the machine may…
