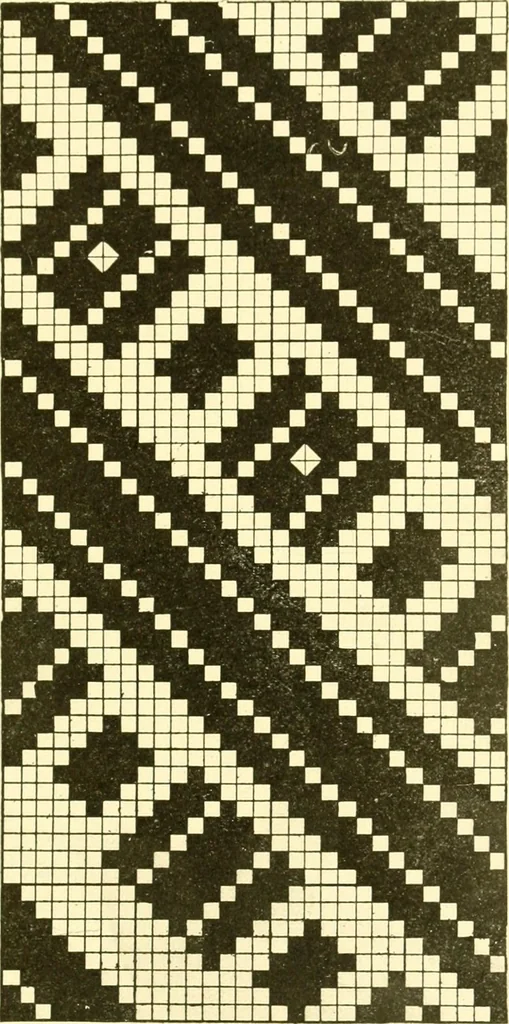

rmining the completion of the patterns.Knowing that the diagonal must occupy a square space, it is quiteimmaterial whether the threads are counted in a horizontal, ver-tical, or diagonal direction, but with the fancy figures runningbetween the diagonal lines, this is not the case, as it is repeated… … Fig. 806. possibility of counting the distance from one figure to another,except in a diagonal line, because there is no repetition in either ahorizontal or vertical direction, until the whole design is corn-pleted. It should be understood that the meaning of the distancefrom one figure to another,…
