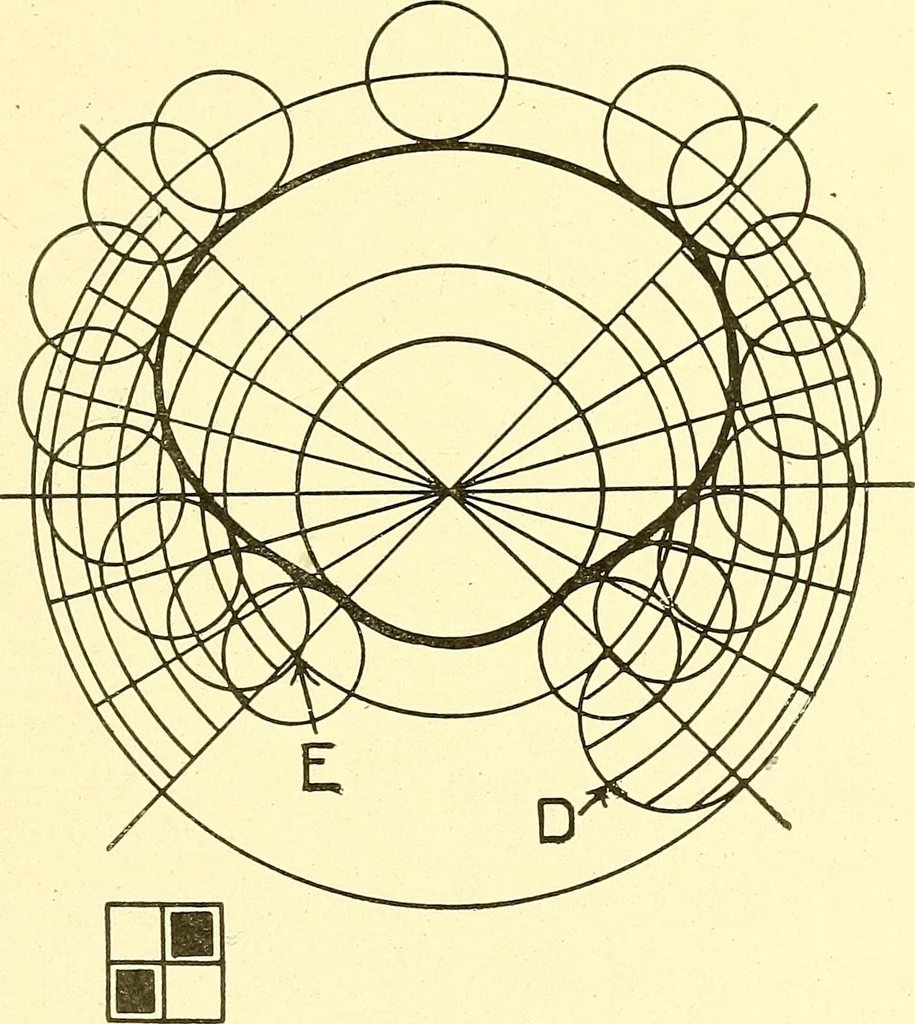

or Fig. 60, a cam for making plain cloth, are asfollows: Center of shaft (the shaft on which the cam is set) to near-est point of contact of the cam with the treadle bowl, 1| inches.Dwell to be one-half the revolution of crank shaft. Describe the first circle, with radius of 1| inches ; add to… … Fig. 60. Plain Cam. To make plain cloth two cams are necessary, the pattern beingmade on two picks. Whatever number of picks there are to be tothe pattern, there must be as many cams to the round, or one revo-lution of the cam shaft. Sometimes when weaving fancy clothmore harnesses are required to…
