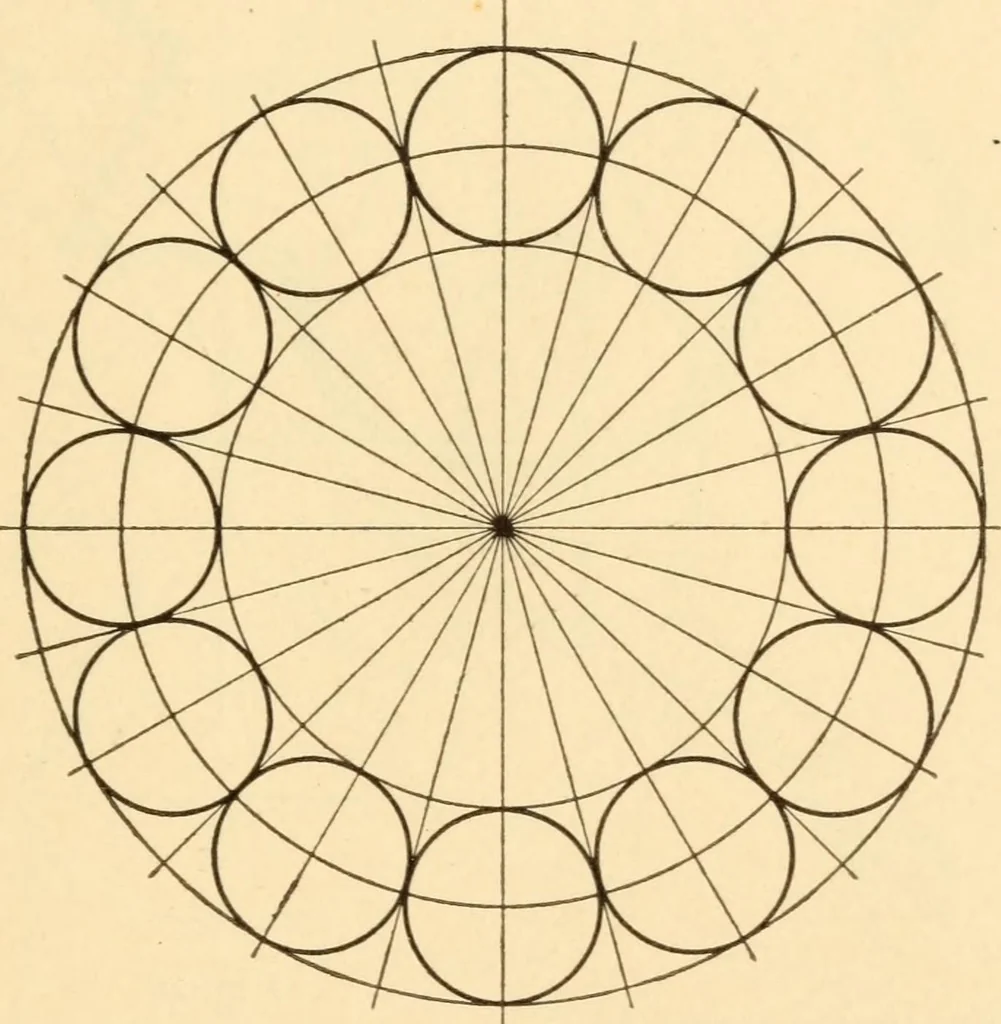

MECHANICAL DRAWING 35 Exercise JJ.—A Maltese cross. Fig. 29. Construc-tion : Draw two equal circles upon the two diametersof a given large circle and proceed as indicated in thedrawing. Exercise 34,—Draw a geometric border using thecircle as a unit. Nearly all design is geometric in char-acter.… … Fig. 28 Exercise 55.—Figure 31 is an original illustrationof the Swastika. Exercise ^6.—Geometric monogram within a trefoil.Fig. 7,2, Exercise 57.—Moldings, i. Cyma Recta, Fig. 33.2. Roman Ogee, Fig. 34. 3. Scotia, Fig. 35. 4.Echinus, Fig. 36. Ogee Arch, Fig. 37.
