Cyclopedia of textile work : a general reference library on cotton, woolen and worsted yarn manufacture, weaving, designing, chemistry and dyeing, finishing, knitting, and allied subjects (1911)

American School (Lansing, Ill.) · Chicago : American school of correspondence · leaf 176

An illustration from Cyclopedia of textile work : a general reference library on cotton, woolen and worsted yarn manufacture, weaving, designing, chemistry and dyeing, finishing, knitting, and allied subjects, 1911, leaf 176

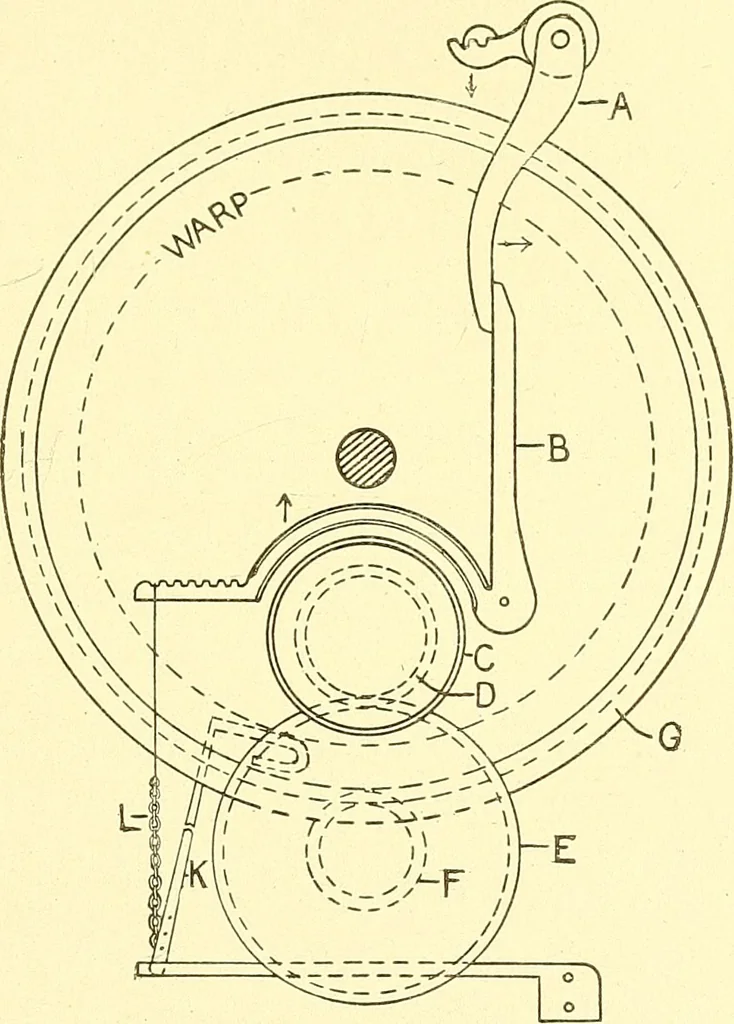

NG. 139 uneven cloth.) Fig. 94 shows very clearly the whole motion ;the n[)per spring K, is the one which is changed to obtain the dif-ferent tensions on the warp, by loosening tlie small set collar andcompressing the spring. In this way more tension is added to thewarp, while the opposite will… … Fig. 95. Friction and Gear Let-Off. moved an equal distance to the opposite side. The compressionon the lower short spring K^, (which counterbalances the oscilla-tion of the whip roll and the rebound of the top spring) is gov-erned by the stoutness of the top spring. The diagram gives avery good…

Textile fabrics · Textile industry

Internet Archive · UMass Dartmouth, Claire T. Carney Library · Public Domain Mark 1.0. Free to use for anything.
