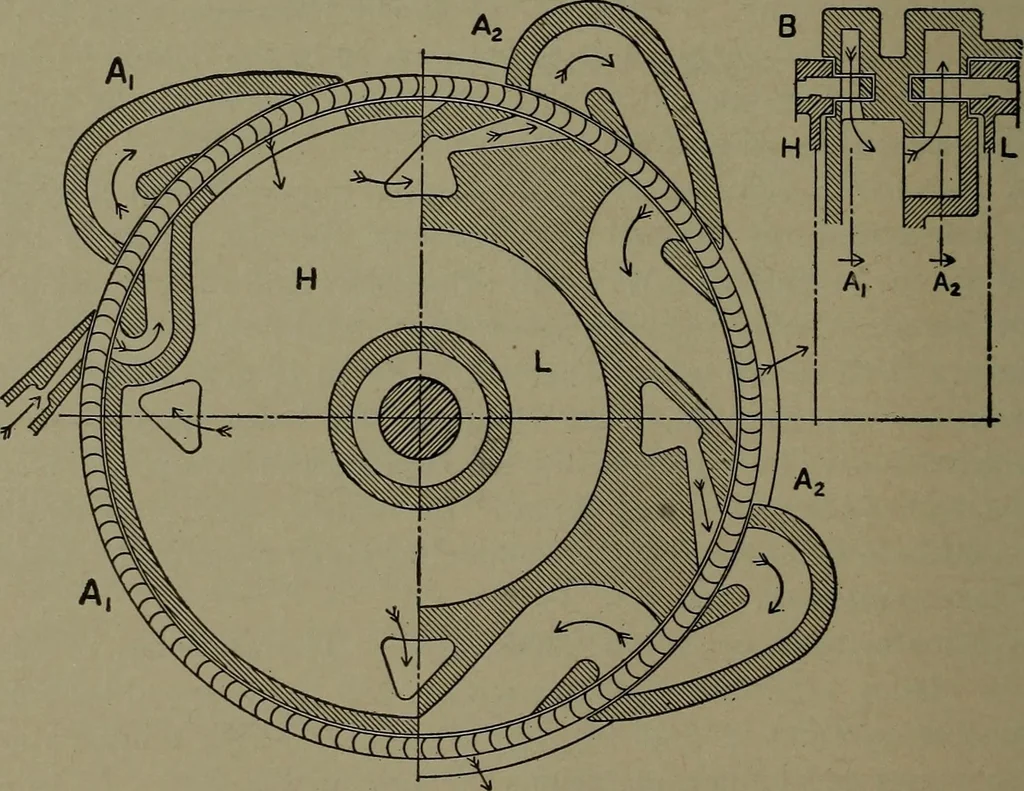

pter I. (6) Directions of Steam Flow. — All the turbines illustrated in§ 4 have what is called axial flow, through nozzles and vanes as well asin general direction. A glance at flow conditions, with the more defi-nite showing of Fig. 323, makes apparent the fact that the steam paththrough a series… … Fig. 352. — The Elektra-Turbine, Radial-flow, Two-stage, Three-impulse: much structural detail omitted. Figure 352 is an example of radial flow, alternately inward and out-ward through one ring of vanes. This design has the merits of com-pactness and, for a several-impulse type with return to the…
