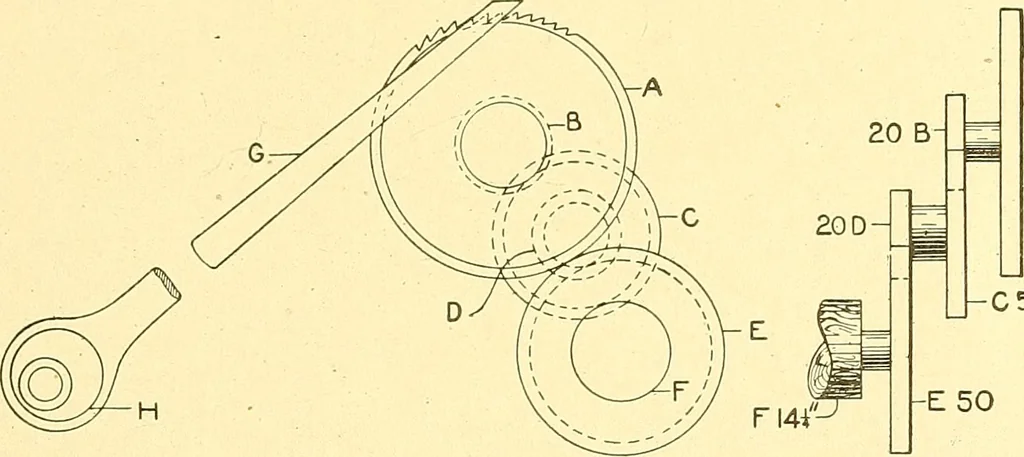

of the number of picks per inch, so that these motions are gener-ally used in the weaving of coarse goods. The most common range or train of gears is such as shown inFig. 98. This motion allows a very wide range for changing, butwhen, as sometimes happens, an order necessitates a half pick… … -C54 -E50 Fig. 99. Intermittent Take-Up Motion. lever commonly called the take-up lever. This lever receivesmotion from a cam fixed on the pick-cam shaft. Sometimes thecam is on the crank shaft. On other looms the motion as inFig. 98, is imparted by the lay sword. Whatever kind of motionis used, it…
