Cyclopedia of textile work : a general reference library on cotton, woollen and worsted yarn manufacture, weaving, designing, chemistry and dyeing, finishing, knitting, and allied subjects (1907)
Chicago : American school of correspondence · leaf 183

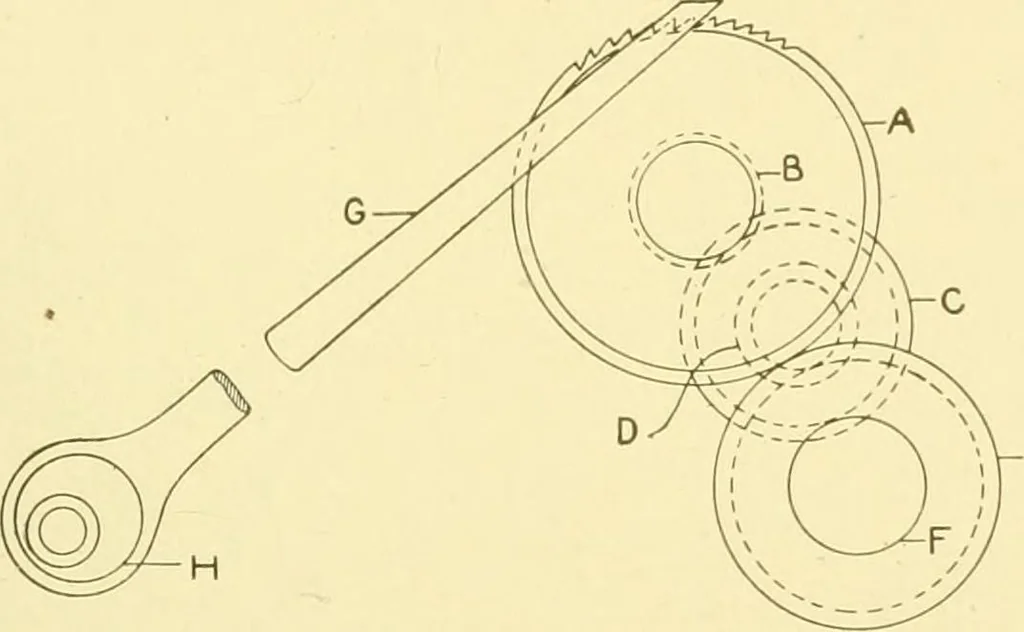

ks per inch, so that these motions are gener-ally used in the weaving of coaise goods. The most common range or train of gears is such as shown inFig. 98. This motion allows a very wide range for changing, butwhen, as sometimes happens, an order necessitates a half pick in-crease per inch,… … r I4f- Fig. 09. Intermittent Take-Up Motion. -E50 lever commonly called the take-up lever. This lever receivesmotion from a cam fixed on the pick-cam shaft. Sometimes thecam is on the crank shaft. On other looms the motion as inFig. 98, is imparted by the lay sword. Whatever kind of motionis used,…
Textile industry · Textile fabrics
Internet Archive · UMass Dartmouth, Claire T. Carney Library · Public Domain Mark 1.0. Free to use for anything.
