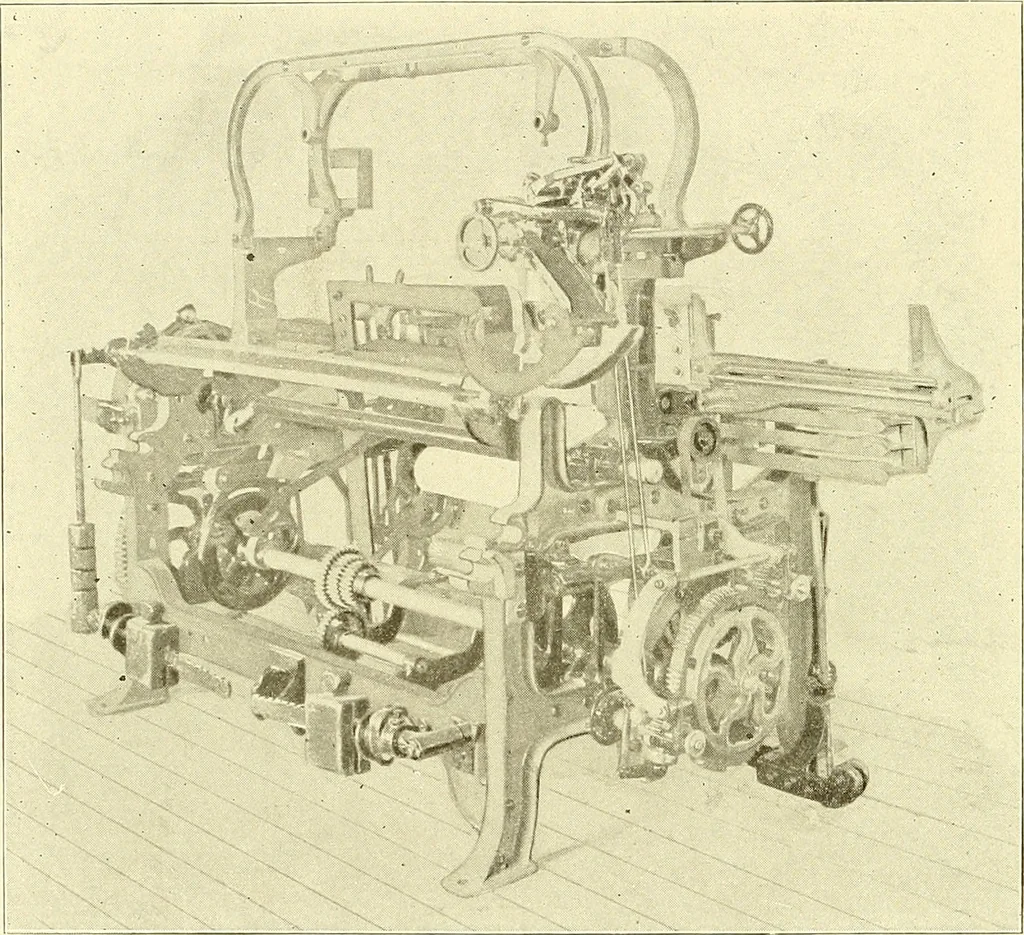

ne-half a revolution of the pick cam 191 178 WEAVING shaft, equal to a full revolution of the crank shaft, and the smallercam has one-half the dwell of the larger. There are two separateelbow levers, C and D, between which the cams revolve, bothbeing pivoted on the same stud, E, which is attached… … Fig 115. Crompton Gingham Loom. upper elbow lever, C, is actuated by the large cam, and carries,fixed on a stud, H, at the elbow, a spring clamp which also grips astud fixed in the upper part of the lower lever, D, at J. As thecams revolve, the large one coming in contact with the upper elbowlever,…
