Cyclopedia of textile work : a general reference library on cotton, woolen and worsted yarn manufacture, weaving, designing, chemistry and dyeing, finishing, knitting, and allied subjects (1911)
American School (Lansing, Ill.) · Chicago : American school of correspondence · leaf 222

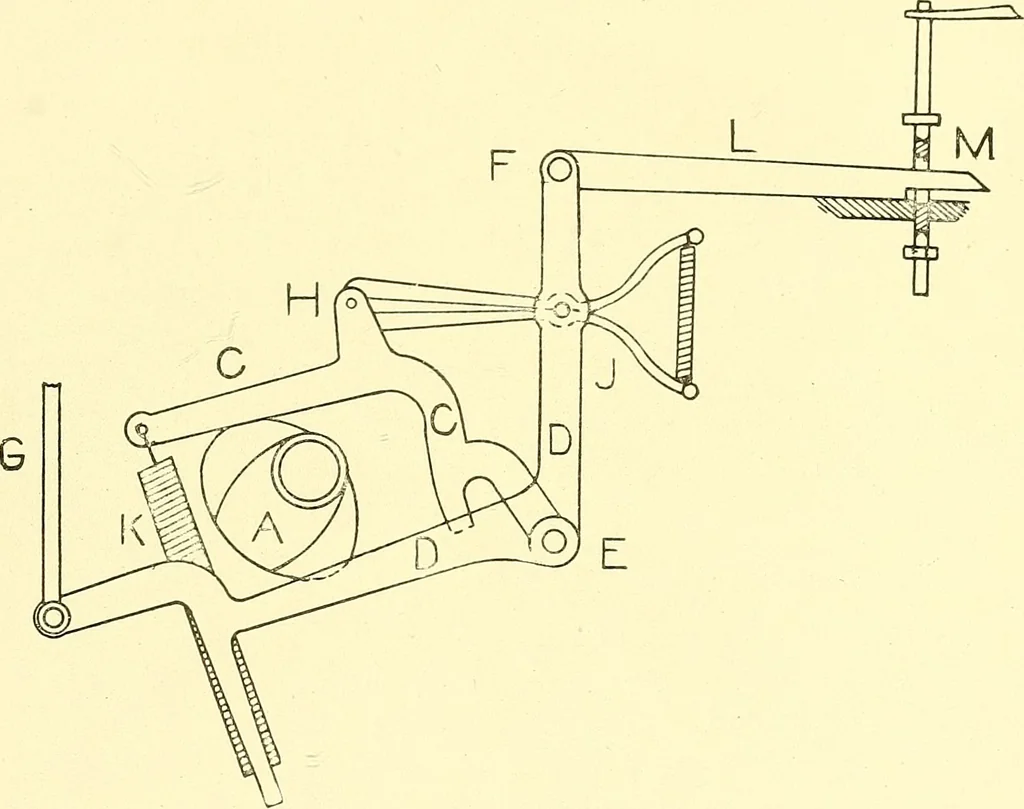

hen the fining breaks, the fork-slide draws backand lifts a finger which is also in contact with the slotted bar, M,thns Iaising the slotted bar so that as the slide is driven forwardthe catch comes in contact with the bottom of the slot, with theresult that further forward movement is prevented,… … Fig. 116. Disconnecting Device. ratchet gear on the filling chain barrel, and all operation of the boxmotion ceases. While the elbow levers are disconnected, thetension spring, K, is extended, and it will draw the upper elbowlever back into position when allowed to contract; this is calledthe…
Textile fabrics · Textile industry
Internet Archive · UMass Dartmouth, Claire T. Carney Library · Public Domain Mark 1.0. Free to use for anything.
