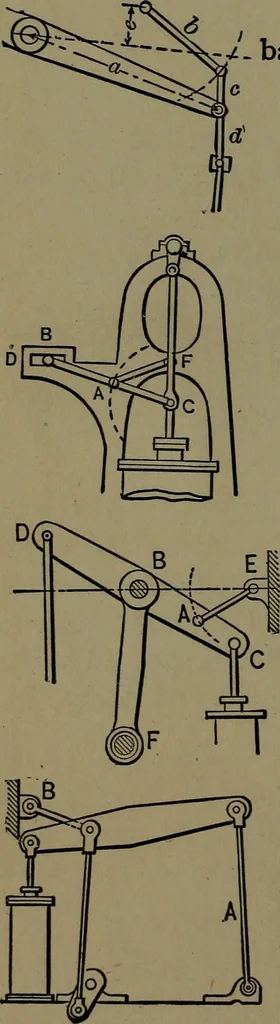

278. PARALLEL MOTION for beam en* gines, in which a and ^ are of equal length.^ and/are of equal length.// and e are of equal length. 279. PARALLEL MOTION, with two pairs of connecting bars. a and ^ are of equal length.^ and ^ are of equal length.e, cross-head. … 280. PARALLEL MOTION, with the radiusbar pivoted above the centre line of the beam.^ and // are of equal length.^= cor d,h = half a, 281. PARALLEL MOTION for a direct-acting engine. The radius bar, A, F, is pivotedto the frame on the centre line and at rightangles to the slot, B. A, C and A, F are…
