Cyclopedia of textile work : a general reference library on cotton, woolen and worsted yarn manufacture, weaving, designing, chemistry and dyeing, finishing, knitting, and allied subjects (1911)
American School (Lansing, Ill.) · Chicago : American school of correspondence · leaf 348

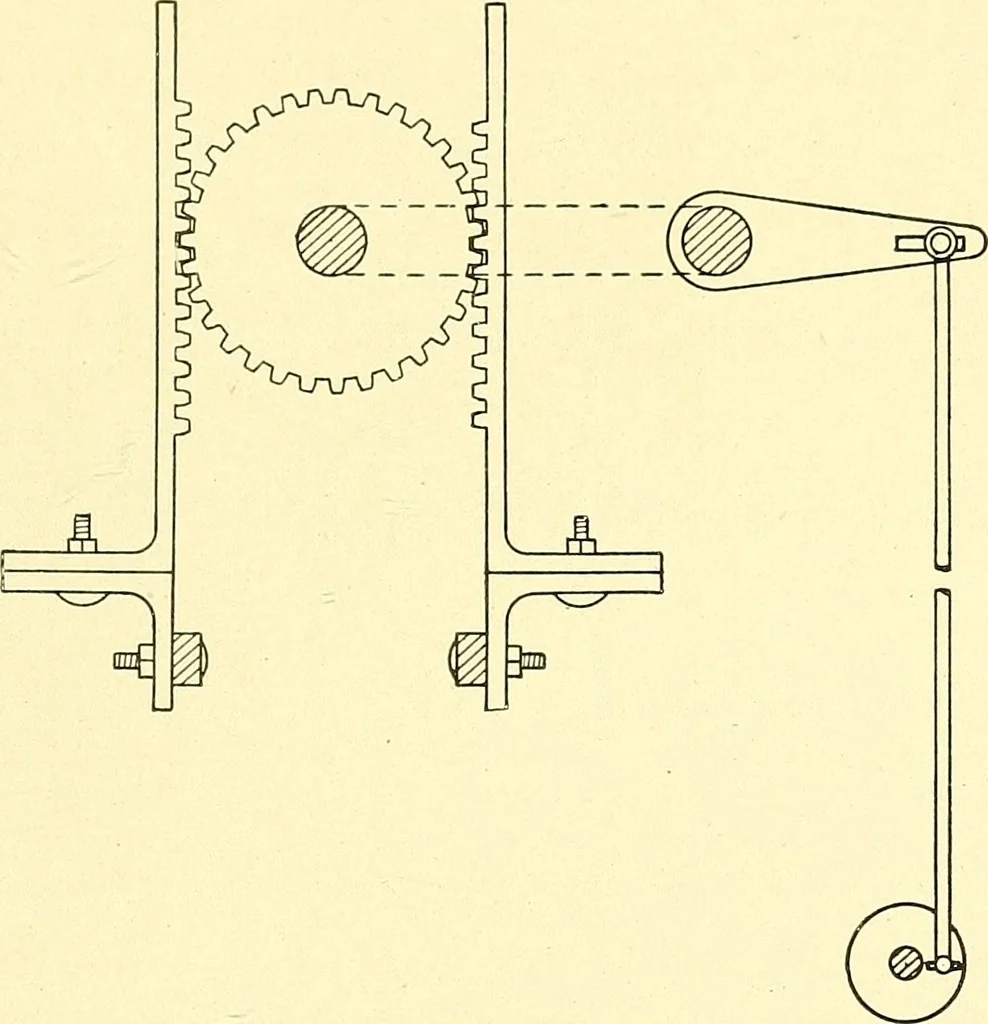

n different directions, with the exceptionthat with an independent cylinder motion only one eccentric rodis used, and the eccentric is placed on the pick cam shaft. But ifthe cylinders are operated by a spindle motion, a slotted crank armis attached to the lifting rod of each griffe and the… … Fig. 29. Rack Method of Lifting Griffe. that board, is raised, at the same time the other cylinder is passingin towards the needle board while the second griffe is descending.When using the cradle lever on a double action machine, it isnecessary to have two different sizes of lifting cranks to…
Textile fabrics · Textile industry
Internet Archive · UMass Dartmouth, Claire T. Carney Library · Public Domain Mark 1.0. Free to use for anything.
