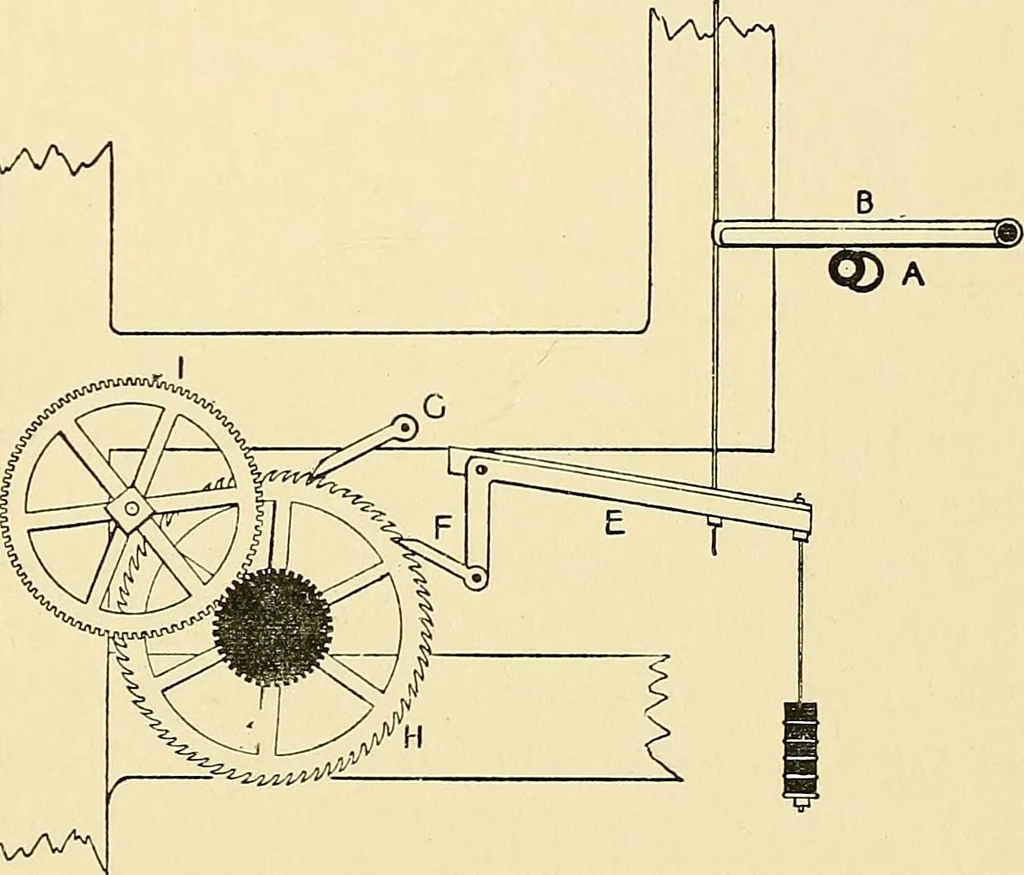

s the following. On theend of the cloth roller a worm wheel is fixed, and a worm from ashort shaft gears with it. The shaft carries two ratchet wheels, theone being the driver and the other having three holding catches allof different lengths. The short shaft also forms a fulcrum for a… … Ky\y\ Fig. 345.—Setting-up Motion for Heavy Looms A, Crank shaft with eccentric. B, Setting-up lever driven off crank shaft.c, Connecting rod. D, Sword. E, Setting-up lever. f. Setting-up catch.G, Holding-up catch. H, Ratchet wheel. I, Beam wheel. 158 WEAVING begins to move to and fro, it lifts the…
