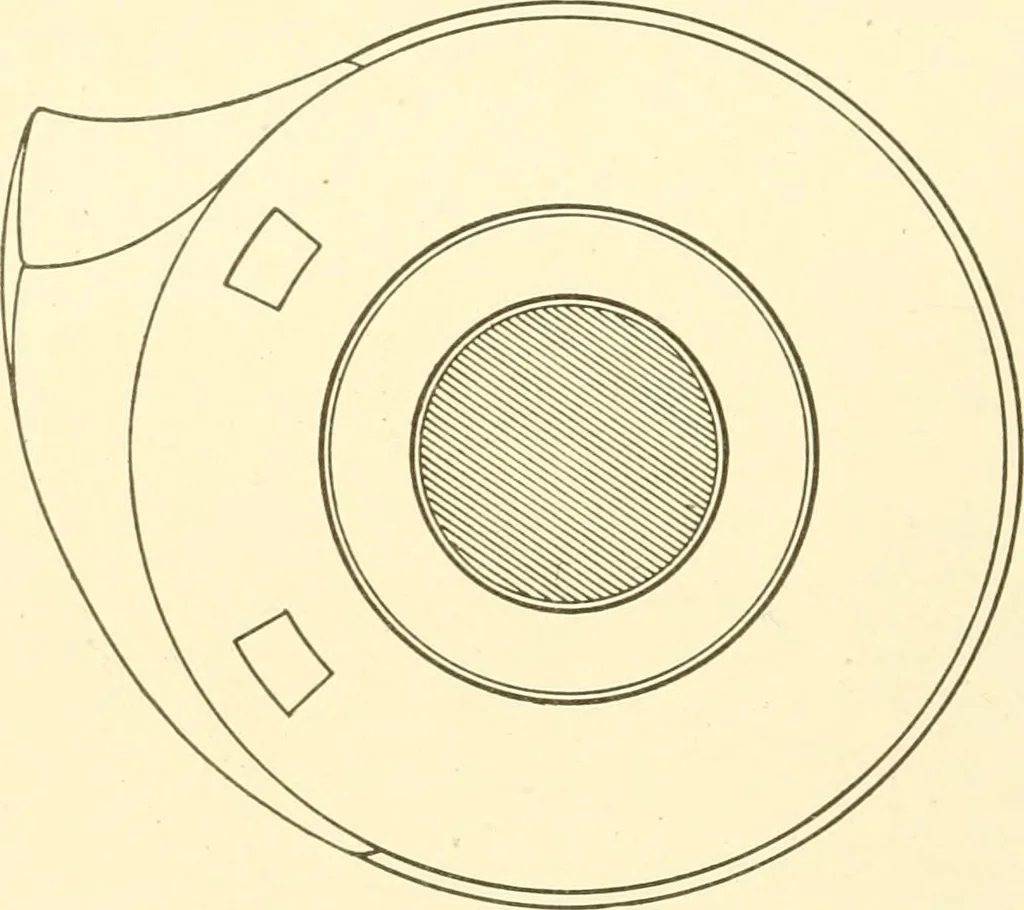

beside requiring more powerto lift it. Relation of the Cone Pitch. Unless the cone is in properproportion to the cam, uneven picking will follow. If the cone istoo small, it locks in the hollow of the pick point; if it is not taperedto the right pitch, only a small portion of the cone is in… … Fig. 76. Circular Pick Cam. slightly inclined to the top. If too near the top of the cam whenmotion is imparted to it, the cone slides away from the point, anddoes not receive the firm blow that gives a good pick. Whenplaced toward the back center of the cam, the point locks on thecone with very…
