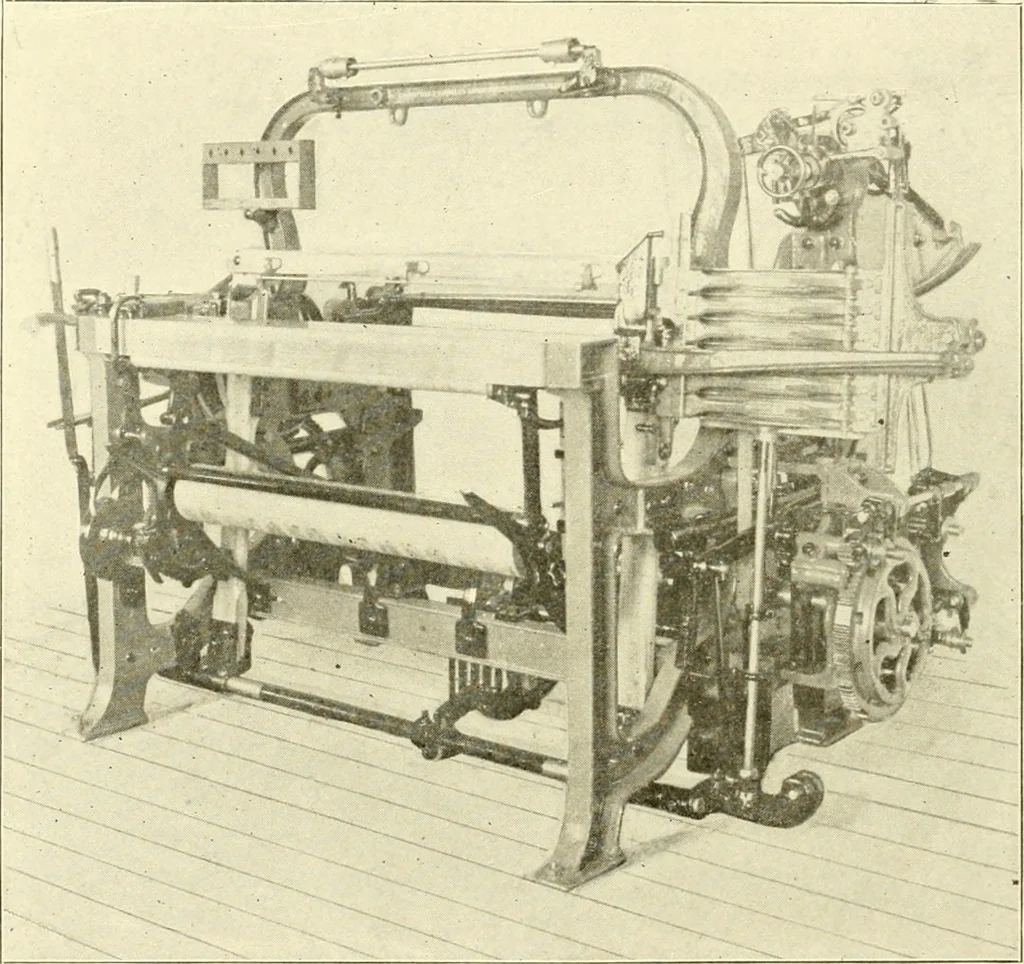

the springlamp, L, gripping a stud fixed to its outer end. The lower endof the clamp is attached to the bottom of the box lifting rod, N. 195 182 WEAVING A small finger called the check fiiiger, is provided to hold eachcam in place, being held in contact with the small studs by meansof a spiral… … Fig. 119. Crompton Gingham Loom. projection fills up the blank space on the gear. Then as the seg-ment gear is advanced by the pin gear, the teeth engage with thoseof the small segment gear, turning it half around, and consequentlythe cam at the end of the shaft will be given a half turn,…
