Cyclopedia of textile work : a general reference library on cotton, woollen and worsted yarn manufacture, weaving, designing, chemistry and dyeing, finishing, knitting, and allied subjects (1907)
Chicago : American school of correspondence · leaf 327

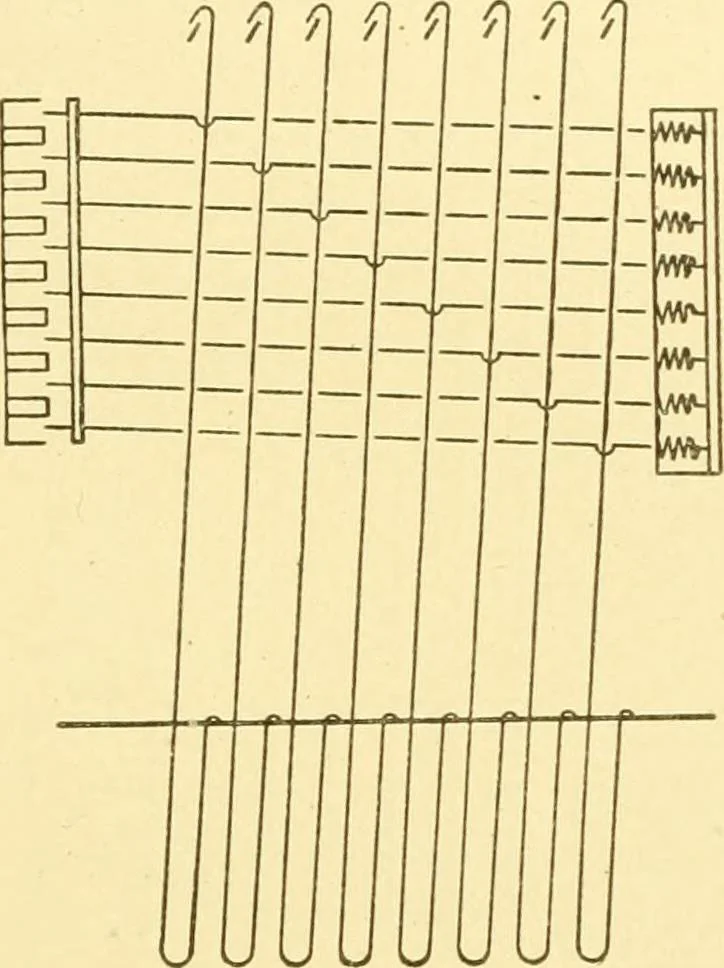

can be replaced more readily in a spring box than if it were onthe end of a needle. 288 JACQUARD MACHINES 11 There is, however, one disadvantage in using the spring box,for when the hole, through which the bolt, which holds the boxin position, passes, has become worn, some of the needles will… … Fig. 12. Hooks Out of Ptrx)endicular with Needles. When placiiKj hooks and needles in a Qnachine^ one row ofeight needles is placed in first; that is, the needles are passedthrough the bars that extend across the machine fiom side to side,and into the holes in the needle board. On the bars the loop…
