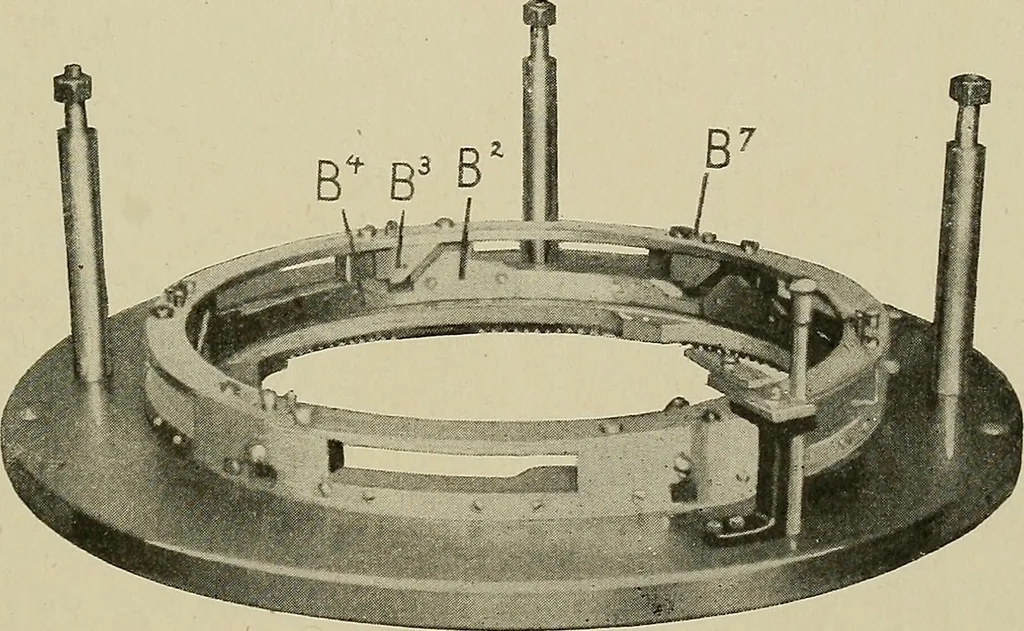

Fig. 40. Needle Cylinder. To the right housing plate Y is secured the driving shaft bracket I,which makes the outer bearing for the driving shaft, and on the shaftJ are tight and loose pulleys between the bearings. Outside the … Fig. 41. Cam Ring. shaft bracket bearing is a hand wheel J, for turning the machine byhand when occasion requires. Attached to the shaft arm is a beltshipper with belt and handle. On the shaft, inside the housing, isa bevel pinion K, which,, meshing into the needle cylinder gear L,rotates the…
