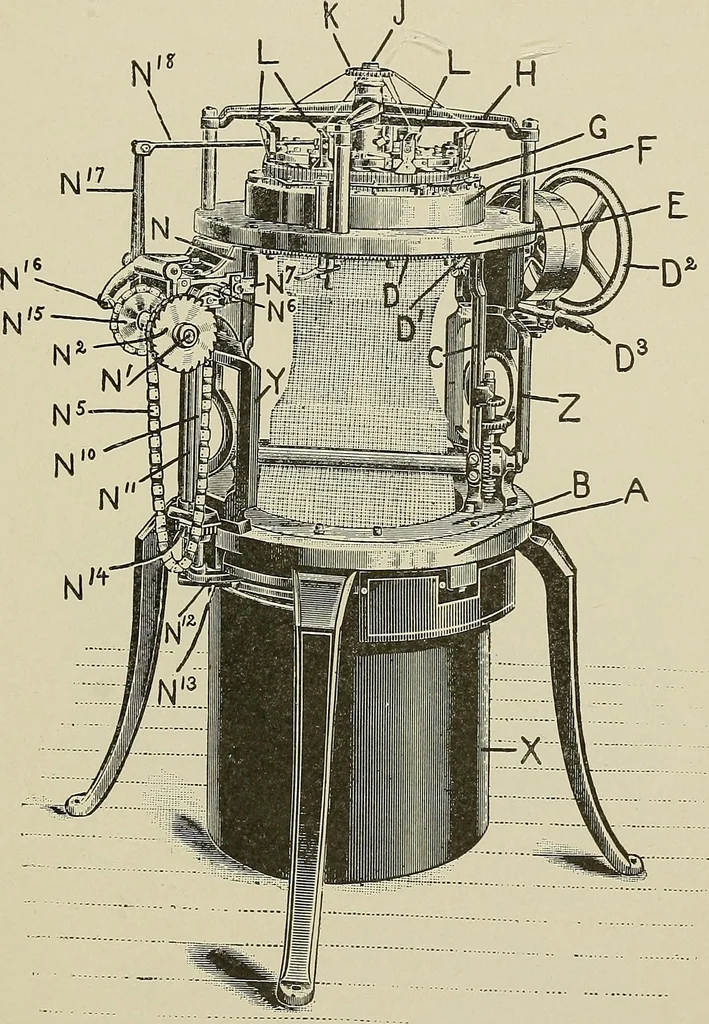

arn measured off should beas long as convenient, and the length accurate at the same tension.To Shorten or Lengthen the Stitch. A small set screw B^Figs. 41 and 42, bears against the stud which holds the stitch camin the cam ring. By means of this set screw, the stitch cam may be 130 KNITTING 117… … Fig. 57. McMichael and Wildman-Machine. Revolving Needle Cylinder. and turn it out to tighten or shorten. The dial cam is adjusted in asimilar manner, by means of the set screw F^°, shown in Fig. 45.Turn the set screw in to lengthen, and out to shorten or tighten thestitch. 181 118 KNITTING The…
