Knitting; a manual of practical instruction in the mechanical details of all types of knitting machinery, their operation, adjustment, and care (1909)
American School of Correspondence, Metcalf, M. A. [from old catalog] · Chicago, American school of correspondence · leaf 153

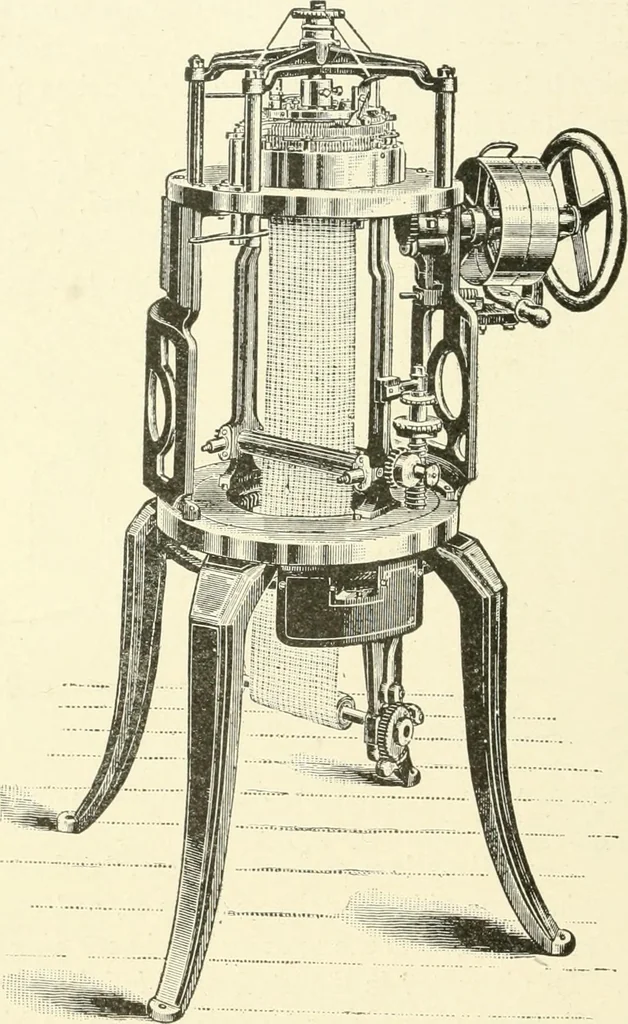

oss-tree H, supported on the bed ring E, depends the rotary needle dial Ion the center stud J, on which it rotates, held up in j)osition by acollar fastened to the lower end of the stud. Above the needle dial 137 124 KNITTING (See Fig. 60) a stationary cam dial is suspended, fixed to the centerstud… … Fig. (57. Plain Machine with Fabric Roll in Place of Can. K. The thread guides L are fixed to the stationary cam dial in amanner to properly present the thread to the needles at points wherethe dial needles are operated by the cams. 138
Knitting machines
