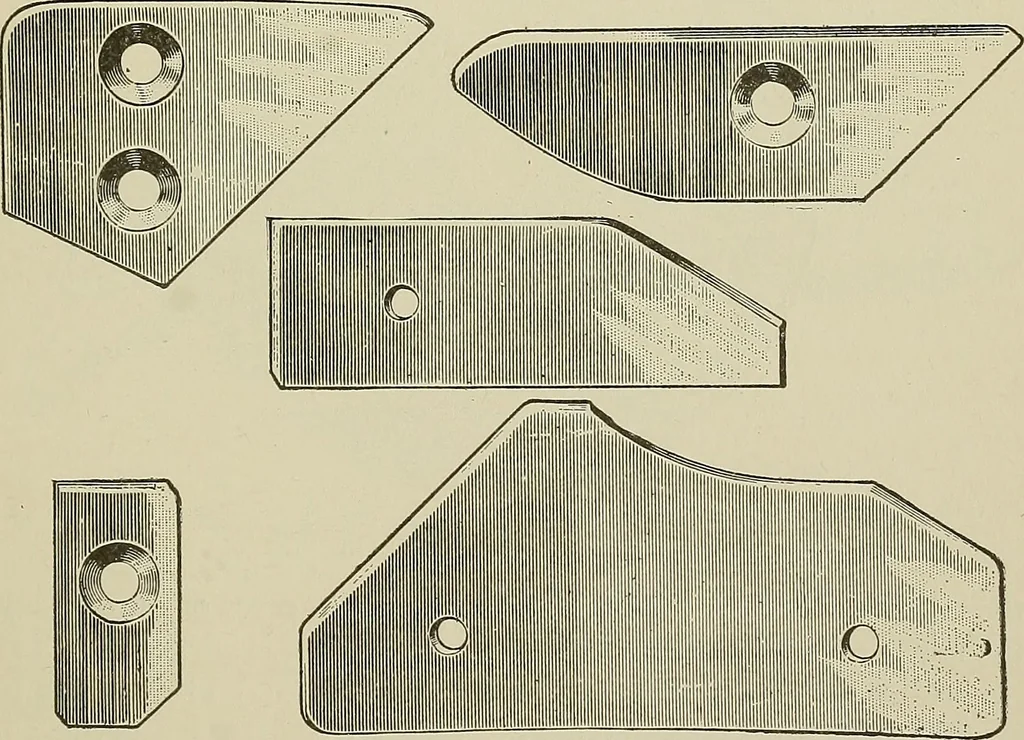

Fig. 69. Cam Ring Section. take-up roll 0^ is geared at 0*^ to the driver roll 0^ at the opposite endfrom the worm gear, Fig. 66, and is journaled at each end in slidingblocks, guides being provided for that purpose in the take-up stand- … Pig. 70. Cylinder Cams. Full Size. ards. These blocks and guides are so arranged that a yieldingpressure is maintained on the frame by means of coil springs confinedin sleeves fixed on the side of the take-up standards and against eachblock. 141 128 KNITTING The worm gear is loose on the driving…
