Cyclopedia of textile work : a general reference library on cotton, woollen and worsted yarn manufacture, weaving, designing, chemistry and dyeing, finishing, knitting, and allied subjects (1907)
Chicago : American school of correspondence · leaf 165

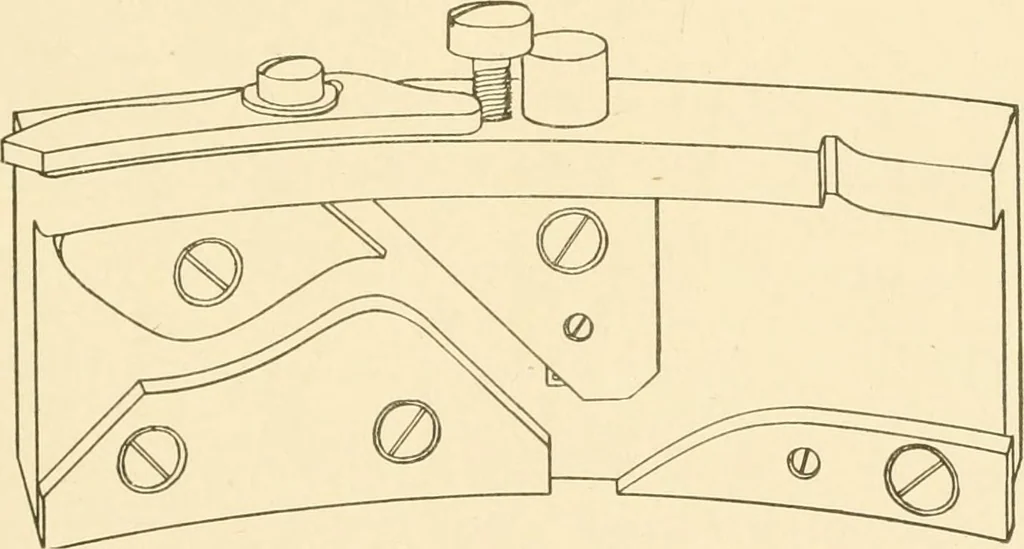

Fig. 71. Projection of Cam Ring. of the stitches. Without this cam, a tight or stiff needle would makea slack line in the fabric. The land or tuck cam B lands the needles to a tuck so that all thelatches are safely opened before the guide covers the needles for pla- … Flg. 7.5. Cam Ring Section. cing a new stitch on them; while the landing or clearing cam C has thesame functions to perform in the dial as the B cam in the ring. The rest cam D performs the same function as does the D camin the ring; the draw-in cam casts off the old stitch placed on the topneedles…
