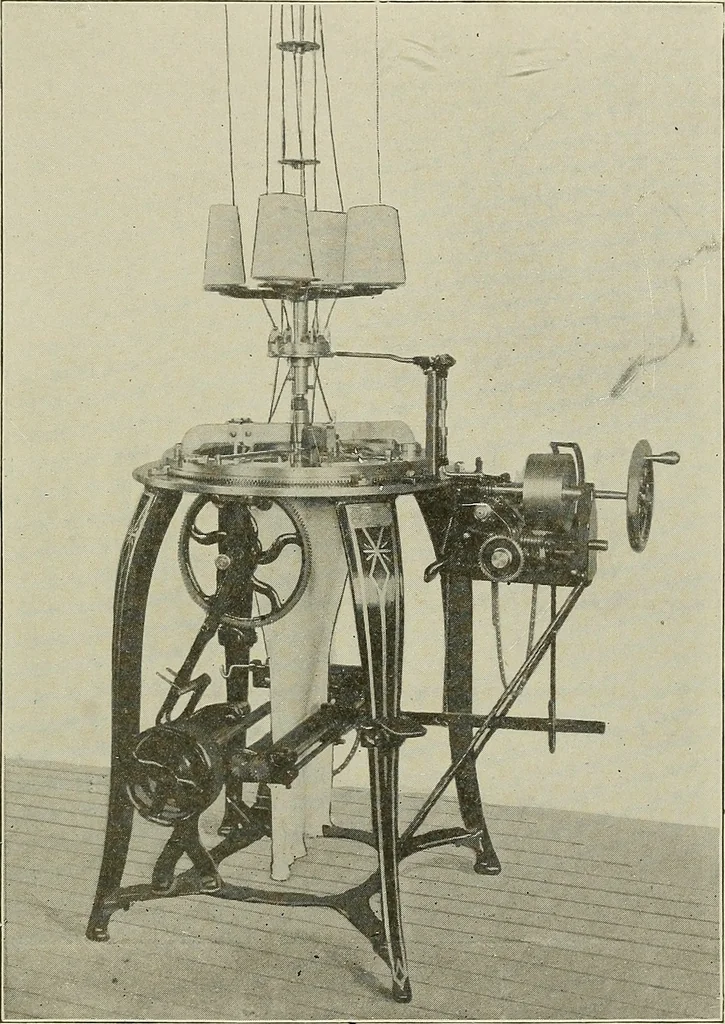

KNITTING 155 ing from it is the central shaft A (See also Fig. 94), having the attach-ed collar A* on which rests the hub of the large ring-like washer Bloose on the shaft. The needle cylinder B^ is supported on the … Fig. 91. Sweater aud Cardigan Jaciiet Macliiue. washer B, and prevented from rotating with the shaft by its projectingrib a engaging the fork B^. When the cam plate is rotated, the hubcarrying the cams turns in unison with it and the needles in the sta-tionary cylinder are thereby actuated to form…
