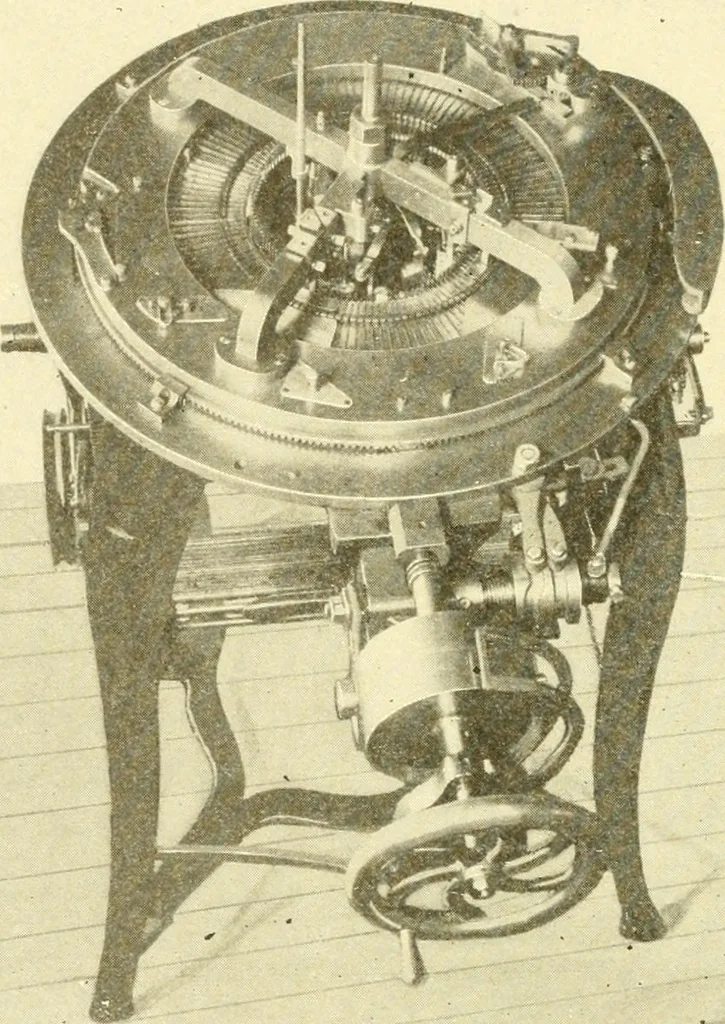

rotating with the shaft by its projectingrib a engaging the fork B^. When the cam plate is rotated, the hubcarrying the cams turns in unison with it and the needles in the sta-tionary cylinder are thereby actuated to form their stitches, and the 171 156 KNITTING movable cams or projections a^ a^ in… … Fig. 93. Sweater and Cardigan Jacket Machine-Top View. ring-like pieces 3 and 4, (See Fig. 95), which are bolted together, andthe part 3 is connected with the frame bed A, the central part beinggrooved for the reception of the needles; the parts 3 and 4 being soshaped and attached as to leave a…
