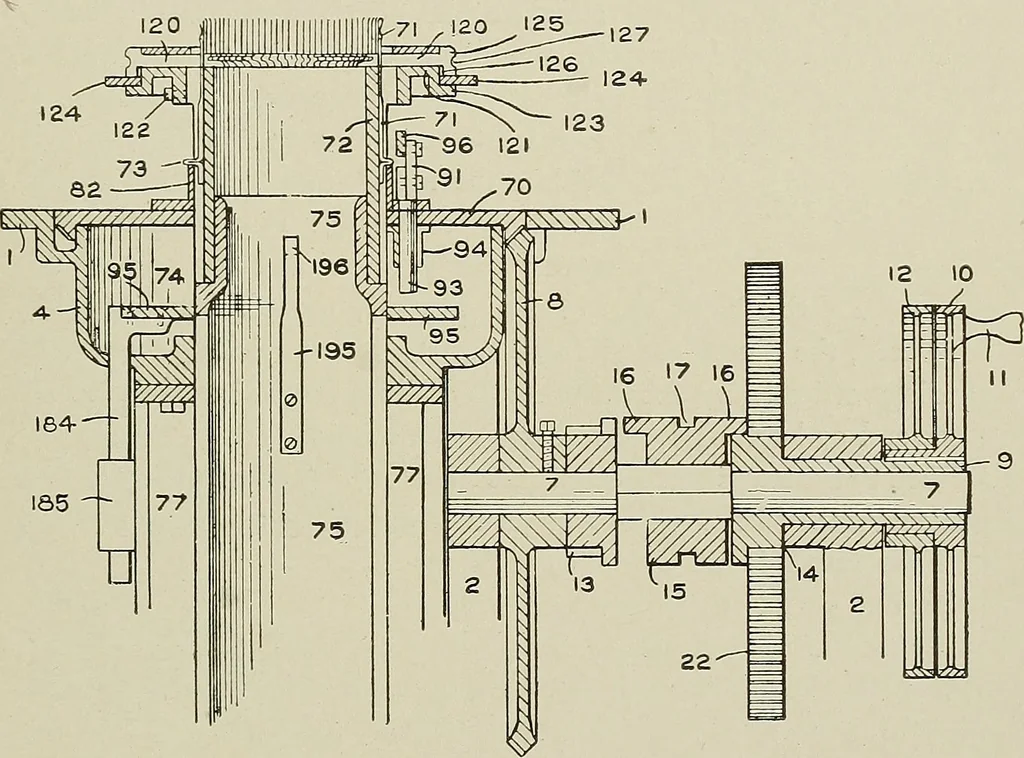

KNITTING 243 lar bearing 94, depending from ring 70. The lower end of the pin 93is acted upon in a vertical direction by a circular plate 95 within thecup-shaped bearing 4. The block and cam are prevented from rotating on the axis ofthe pin by the inner edge of the segmental plate. When cam 90… … Fig. 154. when lowered, engages the tops of the long heels and one short heel;and when the block is lowered at the end of the heel-and-toe work,it sweeps over the long heels and the single short heel, and lowers theneedles to position for circular work. A pin 98 projects from the cam90, and is…
