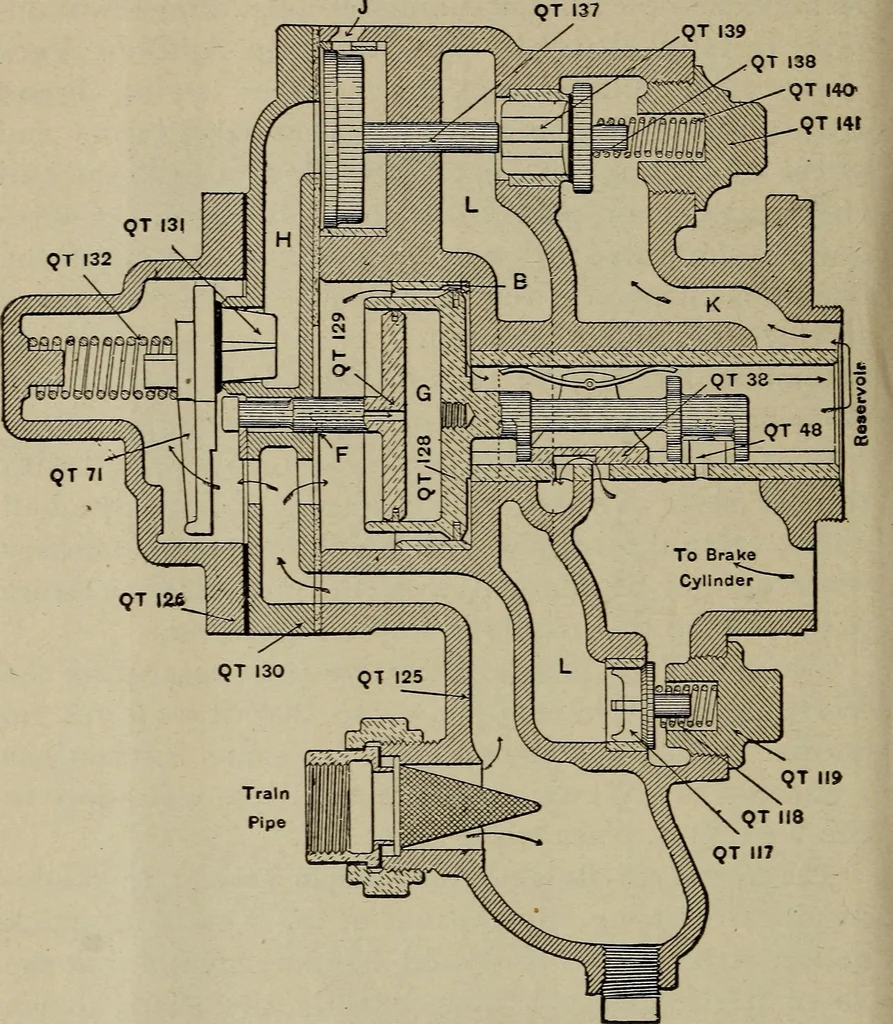

d 260, but those portions ofthe triple which show passage H, port J, vent valve137, and check valve 139, are shown in Fig. 261 and262. The object had in view in illustrating the valvein this manner was to show plainly the relation ofthese ports, passages, and valves, to the other parts of 6o6… … Figure 257New York Quick Action Triple Valve, Release Positionating slide valve, 48; the vent piston, 129; the rubber-seated vent valve, 131, and spring, 132, the emergencypiston, 147, with rubber-seated quick-action valve 139,and spring, 140. AUTOMATIC AIR BRAKES 607 Now return to brake cylinder…
